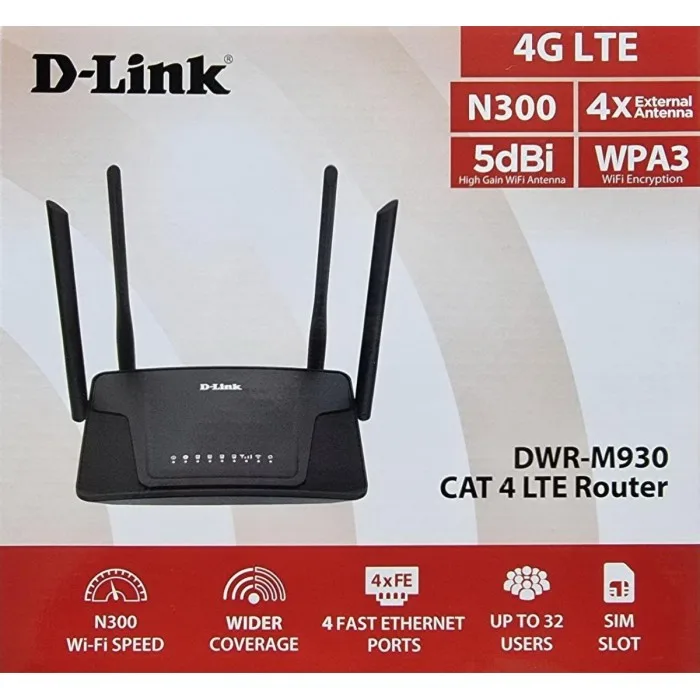

D-LINK D-Link DWR-M930
Frequency Support FDD LTE: B1/3/5/7/8/20/28
TDD 38,40,41
WCDMA:B1/5/8
Device Interfaces 1x 10/100 Fast Ethernet WAN port
3x 10/100 Fast Ethernet LAN ports
1x Reset button
1 x WPS button
1 x Power jack Power jack
1 x Power switch
2 x 5dBi external LTE antennas
2 x 5dBi external 2.4G antennas
1 x Power switch
1x LTE Interface
1x Nano SIM card Slot
Data Rates 2.4GHz up to 300Mbps
Standards 802.11b/g/n
Wi-Fi Data Rates HT20: up to 144 Mbps
HT40: up to 300 Mbps
Wireless Encryption Wi-Fi Protected Setup (WPS)
WPA/WPA2/WPA3 wireless encryption
64/128-bit WEP (Wired Equivalent Privacy)
Wireless ACL MAC address filtering
Firewall Network Address Translation (NAT)
Stateful Packet Inspection (SPI)
Advanced Features WAN fail over
Port forwarding
IPsec VPN pass through
QoS Flow Control
TR-069 remote management
DMZ
IGMP proxy and MLD for IPTV
DHCP server, DHCP client
URL, IP,MAC filter
Virtual server
DDNS
IPv6
Denial of Service (DoS) protection
Embedded AP with 4 SSIDs
Router, AP, Wireless client, WISP , Repeater mode
Dimensions 222x 147x 42 mm (Wx D x H)
Weight 240 g
Power Input: 100 ~ 240 V
Output: 12 V / 1A
Temperature Operating: -10°C to 40°C
Storage: -40°C to 70 °C
Humidity Operating: 10% to 95% non-condensing
Storage: 10% to 95% non-condensing
Certifications CE
ROHS
