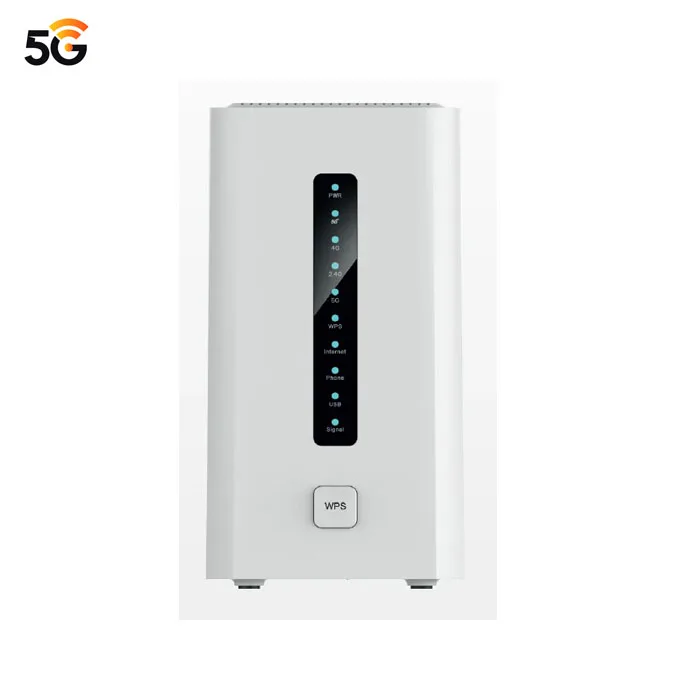

D-LINK D-Link DWR-3000M
Description
Chipset
5G Chipset
WiFi Chipset
Wi-Fi
AX3000 WiFi 6 2×2 160MHz
Device Interfaces
4 x RJ45 10M/100M/1000M LAN Ethernet
1 x RJ45 1000M WAN Ethernet interface
1 x reset button
1 x WPS button
1 x Power jack
1X USB 3.0
1 x RJ11 Phone jack
Wi-Fi Features
Standard
802.11a/b/g/n/ac/ax
2.4G: 2.4~2.4835GHz
5G: 5.150~5.825GHZ
Korea, Japan, ETSI, FCC channels can be selected
Modulation schemes
OFDM = BPSK,QPSK, 16-QAM, 64-QAM 256-QAM 1024-QAM
DSSS = DBPSK, DQPSK, CCK
Transfer Rate
HE20: up to 574Mbps 2.4G+5G
HE40: up to 1147Mbps 2.4G+5G
HE80: up to 1201Mbps 5G
HE160 up to 2402Mbps 5G
5G/ LTE Standards
Release 16, Cat.19
5G NR
5G/ LTE Frequency Support
5G NR SA: n1/n3/n7/n8/n20/n28/n38/n40/n41/n71/ n77/n78
5G NR NSA: n1/n3/n7/n8/n20/n28/n38/n40/n41/n71/ n77/n78
LTE FDD: B1/B3/B7/B8/B20/B28/B71
LTE TDD: B38/B40/B41/B42/B43
5G/LTE Throughput
5G SA Sub-6 : DL 2.4Gbps; UL 900Mbps
5G NSA Sub-6: DL 3.2Gbps; UL 600Mbps
LTE: DL 1.6Gbps; UL 200Mbps
MIMO
DL: 4 × 4 UL: 2 × 2(only support 5G SA)
Output Power
23dBm+2dBm
Software Features
Wireless Main Protocols:
– IEEE 802.11a
– IEEE 802.11b
– IEEE 802.11g
– IEEE 802.11n
– IEEE 802.11ac
– IEEE 802.11ax
– IEEE 802.11h(dfs)
– IEEE 802.11e(wmm)
– IEEE 802.11k/v/r
Wireless Specification Features:
– Embedded AP with 8 SSIDs on each Radio
– Separate authentication for each SSID
– Wmf
– AutoChannel
– BSD
– easyMesh
– WPA3/SAE Security
Mobile Main Protocols:
– 3GPP Release 15
Mobile Specification Features:
– 5G SA & 5G NSA
– VOLTE
– APN & Dial Settings
– NAT support
– Bridge Mode
– Pin Management
– Message Management
– SIM lock/band lock/cell lock support
– AT Command Web interface provided
Voice Main Protocols:
– RFC3261 (optional)
– RFC2833 &inbound(optional)
– RFC4028 (optional)
– RFC3711 (optional)
– RFC3550 (optional)
– RFC3960 (optional)
– RFC5009 (optional)
– RFC 3711 (optional)
– RFC 4568 (optional)
Voice Spec Features:
– VOIP(optional)
– SIP Proxy(optional)
– Codec: G711& G722& G723 & G729 (optional)
– Fax T.38 &V.17&&V.34&&V.152 (optional)
– VAD (Voice Activity Detection) (optional)
– Silence suppression(optional)
– CNG (Comfort Noise Generation) (optional)
– Supports G.168 (echo cancellation) (optional)
Other Spec Features:
– QOS Flow Control
– Samba/DLNA/FTP
– NAT,NAPT and ALG
– DMZ and Port forwarding(Virtual server)
– SPI Firewall, Denial of Service (DoS) protection
– Port filtering, IP filtering and MAC filtering
– URL filter
– DDNS
– Static route
– SNTP Date/time update from Internet Time Server
– Diagnostics(Ping/TraceRoute)
– Logs and statistics
– Automatic timing restart
Management Features:
– WEB GUI
– Command line tools(telnet/ssh)
– TR-069 remote mangagment
– TR181/TR104/TR140/TR143/TR157(periodicstatistics)
– SNMPv2
– UPNP Network Main Protocols:
– RFC0768 UDP
-RFC0791 IP
-RFC0792 ICMP
-RFC0793 TCP
– RFC0826 Ethernet ARP
– RFC0894 IP over Ethernet
– RFC0922 Broadcasting Internet Datagrams
– RFC0950 Internet Standard Subnetting
– IEEE802.3 Ethertype
– IEEE802.1p
– RFC2516 PPP Over Ethernet (PPPoE)
– RFC1662 PPP in HDLC-like Framing
– RFC1332 PPP Internet Protocol Control Protocol
– RFC1042 Transmission of IP Datagrams over IEEE 802 Networks
– IPoE (a.k.a IP over Ethernet over AAL5)
Network Spec Features:
– IPv4/IPv6 dual stack
– 6RD
– IPoE Bridge Mode
– IPoE DHCP/Static
– PPPoE Dynamic/Static
– IPv6 Stateless/Stateful
– PPTP, L2TP GRE IPSEC VPN
– IGMP proxy and MLD for IPTV
– DNS Proxy
– DHCP server
– NAT, NAPT and ALG
