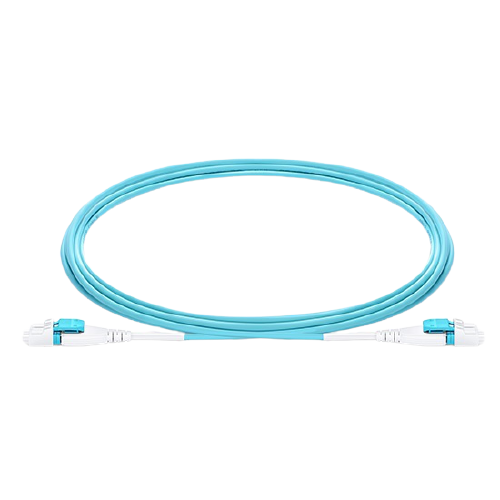

High Quality Uniboot LC to LC, Bend Insensitive Fiber Patch Cable
The LC to LC uniboot connector allows two fibers to be carried through a 2.0mm single jacket. It can be used in high-density cabling areas such as data center which saves space, improves airflow and energy efficiency and reduces cable management troubles. The cable with bend insensitive also can be stapled and bent around corners without sacrificing performance.
Description
Connector Type
LC to LC
Polish Type
UPC to UPC
Fiber Mode
OM4 50/125?m
Wavelength
850/1300nm
Fiber Count
Duplex
Fiber Grade
Bend Insensitive
Insertion Loss
?0.2dB
Return Loss
UPC?20dB
Attenuation at 850 nm
2.3 dB/km
Attenuation at 1300 nm
0.6 dB/km
Minimum Bend Radius
7.5mm
Cable Diameter
2.0mm
Cable Jacket
PVC/LSZH/OFNP
Jacket Color
Aqua
Polarity
A(Tx) to B(Rx)
Operating Temperature
-20 to 70?C
