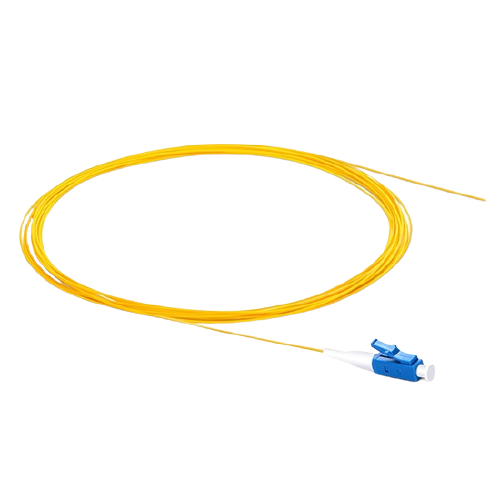

Superior Simplex Single Mode Fiber Optic Pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Please note: E2000 is an LSH connector with a dust-proof cover.
Description
Connector Type
LC/SC/FC/ST/LSH
Polish Type
UPC/APC
Fiber Mode
OS2 9/125?m
Wavelength
1310/1550nm
Fiber Count
Simplex
Cable Jacket
PVC/LSZH/OFNP
Fiber Grade
G.657.A1
Minimum Bend Radius
30mm/10mm
Cable Diameter
0.9/2.0mm
Jacket Color
Yellow
Insertion Loss (dB)
?0.3
Return Loss (dB)
UPC?50, APC?60 (LC/SC/ST/FC)
UPC?55, APC?75 (LSH)
Attenuation at 1310nm
0.36 dB/km
Attenuation at 1550nm
0.22 dB/km
Operating Temperature
-40~75?C
Storage Temperature
-45~85?C
