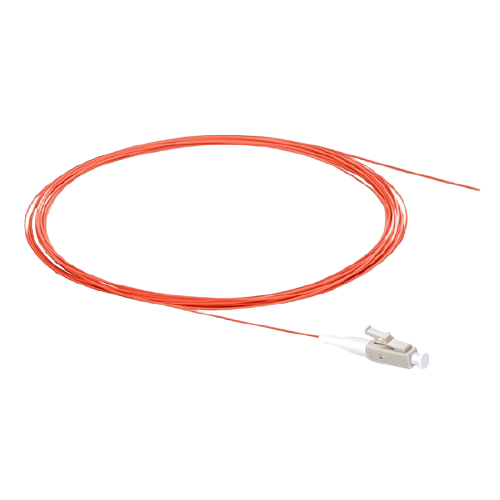

Superior Simplex Multimode Fiber Optic Pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Please note: E2000 is an LSH connector with a dust-proof cover.
Description
Connector Type
LC/SC/FC/ST/LSH
Polish Type
UPC
Fiber Mode
OM1/OM2
Wavelength
850/1300 nm
Fiber Count
Simplex
Cable Jacket
PVC/LSZH/OFNP
Fiber Grade
G.651 (OM1)/Bend Insensitive (OM2)
Minimum Bend Radius
15 mm/7.5 mm
Cable Diameter
0.9/2.0 mm
Jacket Color
Orange
Insertion Loss
?0.3 dB
Return Loss
?20 dB
Attenuation at 850nm
3.0 dB/km
Attenuation at 1300nm
1.0 dB/km
Operating Temperature
-40~75?C
Storage Temperature
-45~85?C
