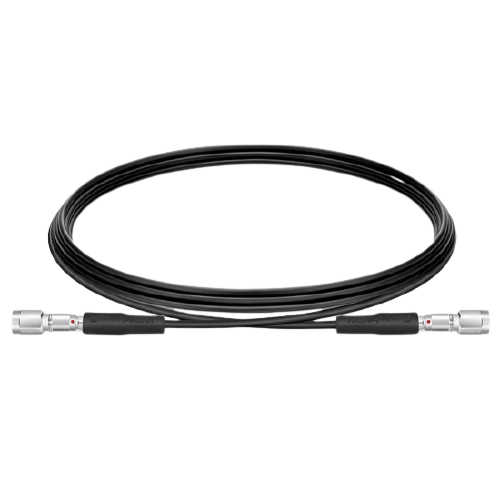

Customized Rosenberger NEX10-FO Connectors, 2 Fibers Single Mode/Multimode 4.80-5.50mm Industrial Fiber Optic Patch Cable
Using as a flexible and convenient connection connector in fiber optic network, where there are devices with a fiber optic interface installed in an outdoor environment. The compact size design interface can be used in existing and future networks, such as industrial sites, mine fields, small sells, distributed antenna systems(DAS), In-building architecture, and MIMO.
Description
Connector Type
LC/ST/SC/FC/Pushpull Plug/Screw Type Plug/Square Flange Socket
Fiber Mode
SMF/MMF
Cable Jacket
LSZH/PVC/PE/PUR/TPU
Fiber Count
2 Fibers
Mating Cycles
?500 Times
Suitable Cables (mm)
4.80mm
Unlock Pull Force
20N
Mating Force
40N
Tensile Resistance (dB)
70/200 (Long/Short Term)
Ingress Protection Class
IP67
Crush Strength
(Indoor/Outdoor Cables)
?100N/10cm
?3000N/10cm
Min. Bend Radius
(Indoor/Outdoor Cables)
30mm/50mm
Insertion Loss (dB)
SMF?0.5@1310/1550nm
MMF?0.5@850/1300nm
Return Loss (dB)
SMF?50@1310/1550nm
MMF?20@850/1300nm
Operating & Storage Temperature
-40~80? (Connectors & Outdoor Cables)
-20~60? (Indoor Cables)
Installation Temperature
-10~60? (Indoor Cables)
-10~65? (Outdoor Cables)
