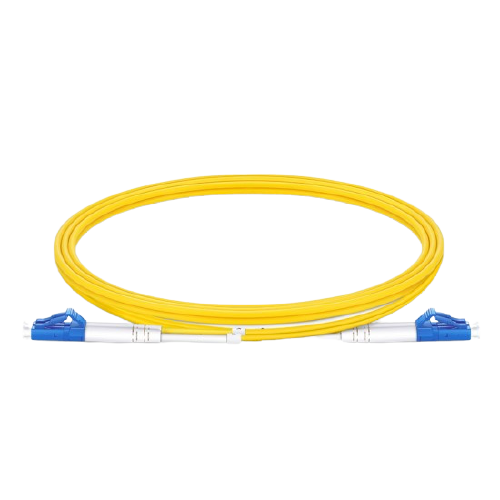

LC/SC/FC/MU 9/125 OS2 Duplex Single Mode Grade B Bend Insensitive Fiber Optic Patch Cable
Grade?B?is?based?on?IEC?61753-1?and?IEC61300-3-34, which?is?stable?with?excellent?random?mating?performance?between?each?grade?B?connector. Max?insertion?loss?of?random?mating?of?grade?B?is??0.25dB,?however,?random?mating?of?standard?patch?cable?will?be?over?0.5dB,?even?over?1.0dB?especially?for?APC?connector. It meets large bandwidth and high speed requirements which allow large streams of data to be transmitted reliably over long distances.
Description
Connector Type
LC/SC/FC/MU
Polish Type
UPC/APC
Fiber Mode
OS2 9/125?m
Wavelength
1310/1550nm
Fiber Count
Duplex
Fiber Grade
G.657.A1 (Compatible with G.652)
Insertion Loss
?0.12dB(Typ.)
Return Loss
UPC?50dB, APC?60dB
Attenuation at 1310 nm
0.36 dB/km
Attenuation at 1550 nm
0.22 dB/km
Minimum Bend Radius
10mm
Cable Diameter
2.0/3.0mm
Cable Jacket
PVC/LSZH/OFNP
Jacket Color
Yellow
Polarity
A(Tx) to B(Rx)
Operating Temperature
-20 to 70?C
