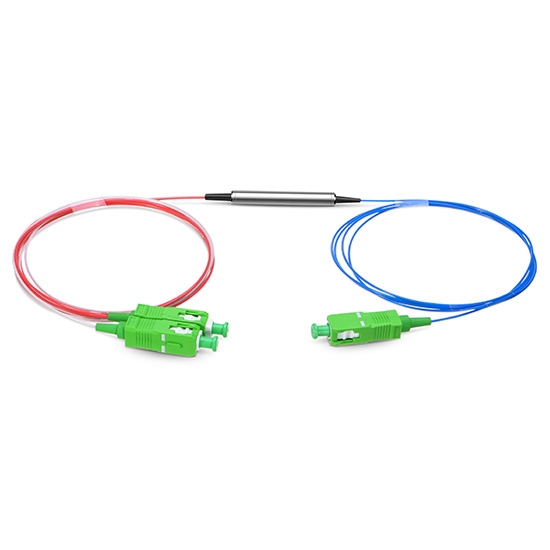

Customized Single Channel DWDM 100GHz Optical Filter
DWDM 100GHz Optical Filter module extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.
FiberStore provides filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications.
Description
Fiber Type
Single fiber
Cable Diameter
900um/2.0mm/3.0mm
Input/Output Fiber Length
0.5m/1m/1.5m
Connector
None/LC/SC/FC/ST, UPC/APC polish
Passband Ripple
< 0.3dB
Polarization Mode Dispersion
< 0.1ps
Package Type
Steel tube/ABS box
Return Loss
> 45dB
Operation Temperature
-40 to 85?C (-40 to 185?F)
Storage Temperature
-40 to 85?C (-40 to 185?F)
Steel Tube Dimensions (HxW)
0.22″x1.50″(5.5x38mm)
ABS Box Dimensions (HxWxD)
0.79″x3.54″x0.39″(20x90x10mm)
* Note: The cable diameter of the steel tube filter can only be customized in 900?m.
