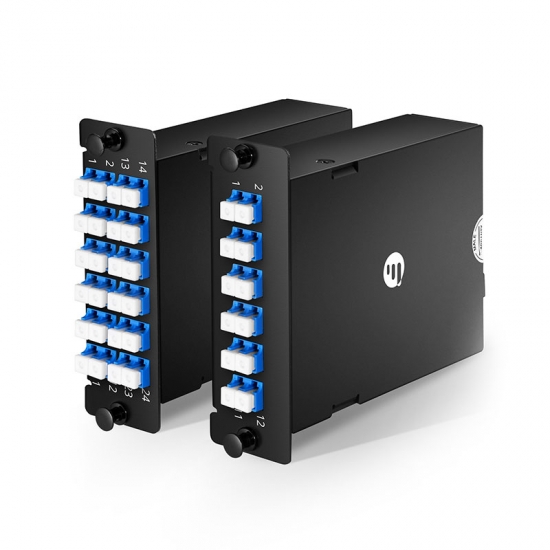

FHD Customized Pre-terminated Plug-play MTP Optic Cassette
FS FHD series MTP fiber cassettes are custom-built to your applications, they provide the interface between the MTP connector on the trunk and the LC/SC duplex jumpers that will then connect directly into electronics.
The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, 1U up to 96 LC fibers.
Description
Front Connector Type
LC/SC Duplex
Rear Connector Type
US Conec MTP? Male (Pinned)
Polarity Type
Type A/AF
Fiber Mode
OS2 9/125?m
Material
Aluminium (AL5052)
Dimensions (HxWxD)
1.38”x4.29”x4.64” (35x109x118mm)
Operating Temperature
-10?C to 60?C
Storage and Shipping Temperature
-10?C to 60?C
RoHS Compliancy Status
Compliant
Application
Matching for FHD Series Fiber Enclosures
