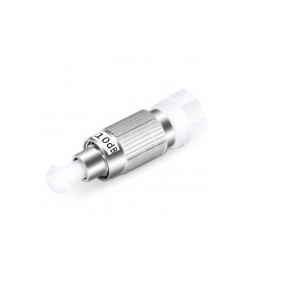

Customized FC Fixed Fiber Optic Attenuator, SMF
As optical passive devices, attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
Fiber Connector
FC
Ferrule Type
Zirconia Ceramic
Connector Gender
Fixed Male to Female
Transfer Mode
SMF
Attenuation
1~25dB
Operating Wavelength(nm)
1260~1620
Attenuation Accuracy
1-9dB?0.5dB, 10-25dB?10%
Return Loss
?45dB
Polarization Dependent Loss
?0.2dB
Max Optical Input Power
200mW
Humidity
95%RH
Operating Temperature Range
-40 to 80?C (-40 to 176?F)
Storage Temperature Range
-40 to 85?C (-40 to 185?F)
