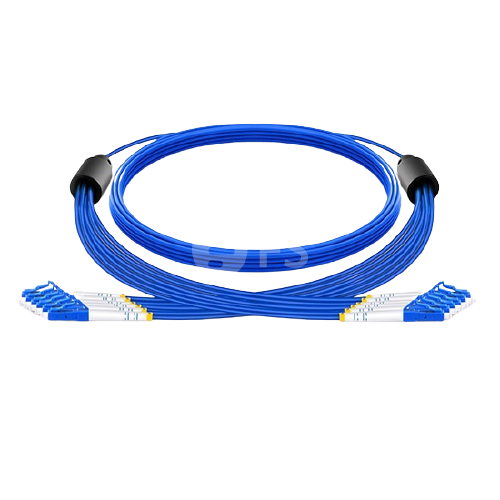

Customized 6 Fibers Singlemode 9/125 Armored Breakout Cable 3.0mm Legs
The multifiber armored cables provide both durability and flexibility into a unique networking solution with 4 to 12 individual fiber strands. Each fiber has an helical stainless steel tape over a buffered fibre surrounded by a layer of aramid and stainless steel mesh with an outer jacket. It’s specifically designed for customer premises, central offices and indoor harsh environments or heavy traffic areas which require extra protection.
Description
Connector Type
LC/SC/ST/FC
Polish Type
UPC/APC
Fiber Mode
OS2 9/125?m
Wavelength
1310/1550nm
Fiber Count
6 Fibers
Cable Jacket
PVC
Fiber Grade
G.657.A1
Minimum Bend Radius (mm)
30D (Dynamic/Static)
Insertion Loss
?0.3 dB
Return Loss
UPC?50 dB, APC?60 dB
Attenuation at 1310 nm
0.36 dB/km
Attenuation at 1550 nm
0.22 dB/km
Trunk Diameter
4.5mm
Breakout Diameter
3.0mm
Polarity
A (Tx) to B (Rx)
Jacket Color
Blue
Armor Layer
Stainless Steel Tube
Tensile Loads (N)
200/400 (Long/Short Term)
Operating Temperature
-25~70?C
Storage Temperature
-25~70?C
