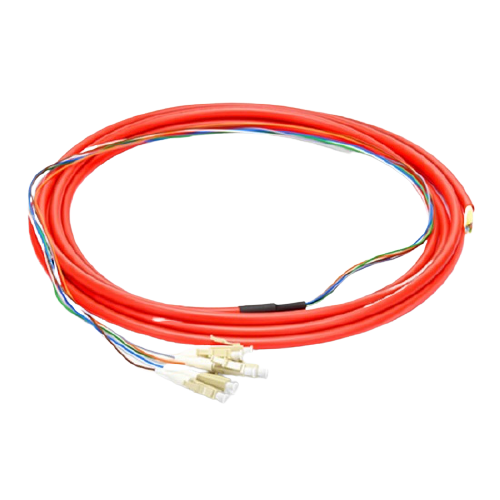

Superior Multimode Fiber Optic Pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Please note: E2000 is an LSH connector with a dust-proof cover.
Description
Connector Type
LC/SC/FC/ST/LSH
Polish Type
UPC
Fiber Mode
OM1/OM2
Wavelength
850/1300 nm
Cable Type
Color-coded/Bunch/Ribbon
Fiber Count
4/6/8/12/24
Fiber Grade
G.651 (OM1)/Bend Insensitive (OM2)
Min. Bend Radius (Color-coded)
15 mm/7.5 mm
Dynamic Min. Bend Radius (Bunch/Ribbon)
20D (mm)
Static Min. Bend Radius (Bunch/Ribbon)
10D (mm)
Insertion Loss
?0.3 dB
Return Loss
?20 dB
Attenuation at 850nm
3.0 dB/km
Attenuation at 1300nm
1.0 dB/km
Cable Jacket
PVC/LSZH/OFNP
Cable Diameter
0.9/2.0 mm
Operating Temperature
-40~75?C
Storage Temperature
-45~85?C
