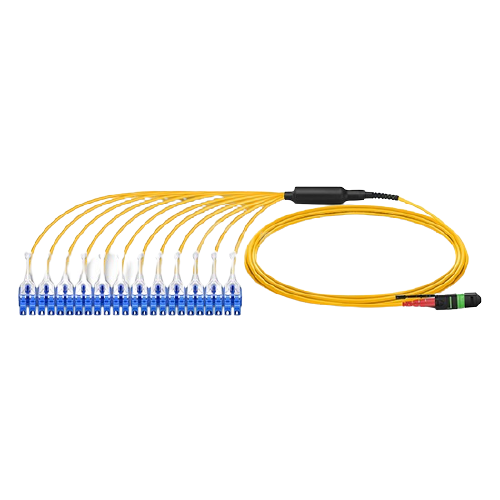

MTP Female to LC UPC Duplex OS2 Singlemode Harness Cable
MTP cables are your best choice for high density fiber networks. It’s specifically designed for fast ethernet, fiber channel, data center and gigabit ethernet applications. This 12 Fiber harness cable is used for connecting (6) SFP+ into a MTP adapter panel and MTP trunk. This LSZH cable is designed and tested to conform to IEC-60332-1 and IEC-61034.
Connector A
US Conec MTP Push Pull Tab
Connector B
Push Pull Tab LC UPC Duplex
Fiber Mode
OS2 SMF 9/125?m
Wavelength
1310/1550nm
Fiber Count
20/24 Fibers
Cable Jacket
LSZH/Plenum
MTP Connector IL
0.35dB Max (0.15dB Typ.)
LC Connector IL
?0.15dB
MTP Connector RL
?60dB
LC Connector RL
?55dB
Jacket OD
3.0mm
Fan-Out Diameter
2.0mm
Installation Tensile Load
100 N
Long-Term Tensile Load
50 N
Storage Temperature
-40?C to +85?C
Operating Temperature
-10?C to +70?C
