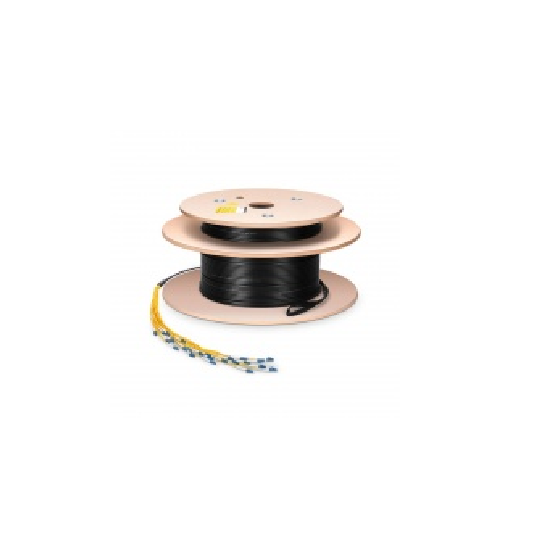

2 Fibers Single Mode Pre-Terminated Indoor/Outdoor Fiber Cable Assembly
Pre-terminated indoor/outdoor fiber cable assembly is designed to support today’s data needs while meeting tomorrow’s ever-advancing network requirements. It’s ideal for connecting the networks of two buildings through the use of an underground conduit, also installed in entrance facilities.
Description
Connector Type
LC/SC/ST/FC
Polish Type
UPC/APC
Fiber Mode
OS2 9/125?m
Fiber Count
2 Fibers
Jacket Material
LSZH
Jacket Color
Black
Breakout OD
2.0mm
Trunk OD
5.0mm
Insertion Loss
?0.3dB
Return Loss
UPC?50dB, APC?60dB
Min. Dynamic Bend Radius
20D (mm)
Min. Static Bend Radius
10D (mm)
Cable Type
Tight Buffered
Maximum Tension of Pulling Tube
245N
Fiber Grade
G.652.D
Operating Temperature
-20~70?C
