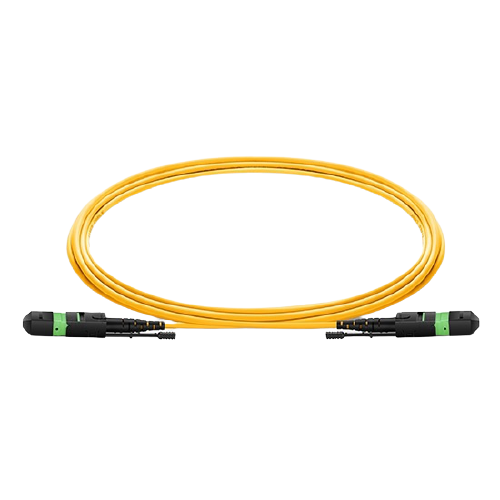

MTP to MTP, 12 -144 Fibers, Push Pull Tab Connector, LSZH Multimode HD Bend Insensitive Trunk Cable
MTP-HD to MTP-HD (High Density ) fiber patch cables allow high-density connections between network equipment in telecommunication rooms. The Push/Pull tab connector can be removed using a simple pull tab, eliminateing the need for finger access to the MTP connectors release mechanism in dense applications.
Description
Connector
US Conec MTP Push Pull Tab
Fiber Category
OS2 9/125 SMF
Fiber Count
12-144 Fibers
Trunk Diameter
3.0mm-17.3mm
Test Wavelength
1310nm
Durability
?200 times
Insertion Loss
?0.35dB
Return Loss
?60dB
Flame Material
LSZH
Outer Jacket Color
Yellow
Operating Temperature
-10?C to 60?C
Storage Temperature
-40?C to 70?C
