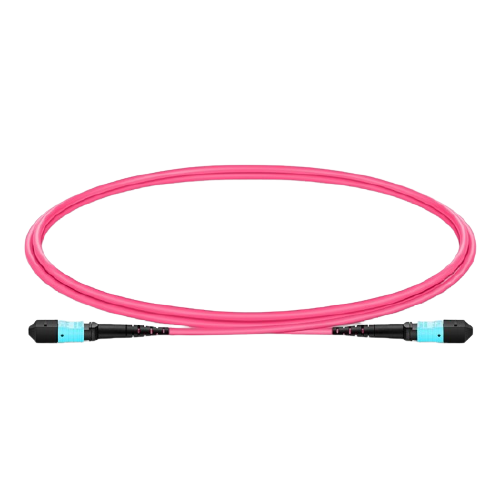

MTP to MTP, 12-144 Fibers, Push Pull Tab Connector, LSZH Multimode HD Bend Insensitive Trunk Cable
MTP-HD to MTP-HD (High Density ) fiber patch cables allow high-density connections between network equipment in telecommunication rooms. The Push/Pull tab connector can be removed using a simple pull tab, eliminateing the need for finger access to the MTP connectors release mechanism in dense applications.
Description
Connector
US Conec MTP Push Pull Tab
Fiber Category
OM4 50/125 MMF
Fiber Count
12-144 Fibers
Trunk Diameter
3.0mm-17.3mm
Test Wavelength
850nm
Durability
?200 times
Minimum Bend Radius
7.5mm
RoHS Compliancy Status
Compliant
Insertion Loss
?0.35dB
Return Loss
?20dB
Flame Material
LSZH
Outer Jacket Color
Magenta
Operating Temperature
-10?C to 70?C
Storage Temperature
-10?C to 60?C
