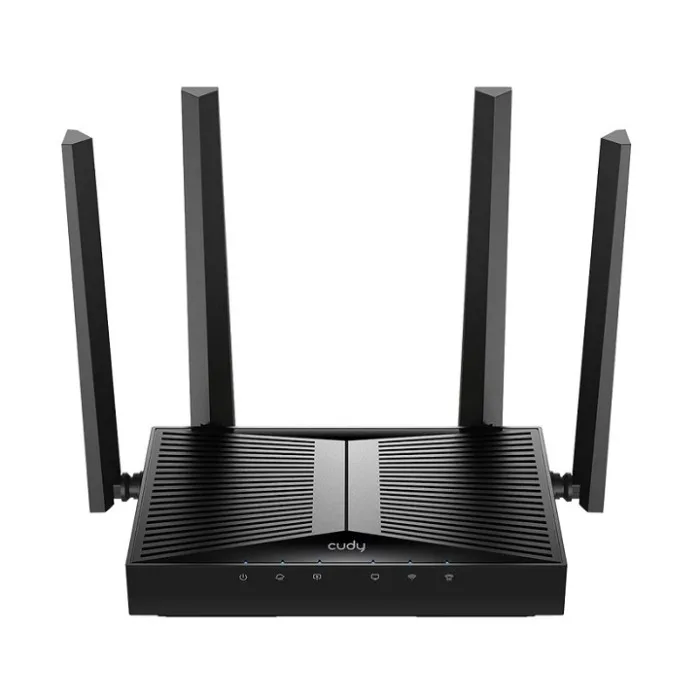

Cudy Cudy WR3600
| Device Specifications – Model WR3600 1.0 | |
|---|---|
| CPU | |
| CPU Details | 2.0 GHz Quad-Core, ARM Cortex-A7 |
| Memory/Storage | |
| Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 512 MB (4 Gbit) DDR3L |
| Wireless | |
| 5 GHz Wi-Fi Speed | 2882 Mbps |
| 2.4 GHz Wi-Fi Speed | 688 Mbps |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 4x Fixed |
| 5 GHz Antenna Gain Max | 5.5 dBi |
| 2.4 GHz Antenna Gain Max | 5.4 dBi |
| FEM or PA/LNA | 5 GHz: 2x External 2.4 GHz: 2x Internal |
| Beamforming | True |
| Range Performance | Max: 220 m (722 ft) |
| Wall Performance | Two wooden walls < 10 cm (4″) thick One concrete wall < 20 cm (7″) thick or Two concrete walls < 10 cm (4″) thick |
| Interfaces | |
| Gigabit RJ45 Ports | 5 (1x WAN, 4x LAN) |
| LED Indicators | |
| Power, Internet, WAN, LAN, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi | |
| Physical Buttons | |
| WPS Button, Reset Button | |
| Power | |
| Power Methods | DC |
| DC Input | 12V 1A |
| Power Adapter | Input: 100 – 240 V, 50/60 Hz AC Output: 12V 1A DC |
| Max Power Consumption | 9W |
| Reliability | |
| Operating Temperature | 0 C – 40 C (32 F – 104 F) |
| Storage Temperature | -40 C – 70 C (-40 F – 158 F) |
| Operating Humidity | 10% – 90% non-condensing |
| Storage Humidity | 5% – 95% non-condensing |
| Certifications | FCC, CE |
| Mechanical | |
| Installation | Desktop, Wall-mount |
| Dimension (Device) | 183.3x109x38 mm (7.22×4.29×1.5 in) |
| Each Antenna | 175 mm (6.89 in) |
| Package Content | |
| WR3600, Power Adapter, Ethernet Cable, Installation Guide | |
