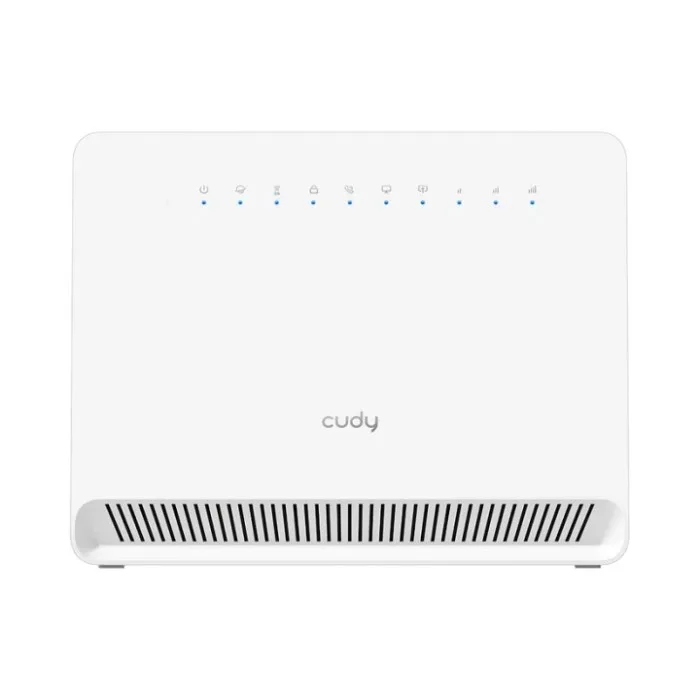

Cudy Cudy LT400V
| Device Specifications – Model LT400V 1.0 | |
|---|---|
| CPU | |
| CPU Details | 580 MHz Single-Core, MIPS24KEC |
| Memory/Storage | |
| Flash/ROM | 8 MB (64 Mbit) NOR |
| DDR/RAM | 64 MB (512 Mbit) DDR2 |
| Cellular | |
| Cellular Standards | 4G Cat. 4 |
| Cellular Antennas | 2x Fixed |
| SIM Options | 1x Nano SIM Slot |
| Available Versions | EU, US, AU, CN |
| EU Version Cellular | |
| Suitable Region | Europe, Middle East, Africa |
| Max DL Speed | 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD) |
| Max UL Speed | 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD) |
| Advanced | DL 2×2 MIMO |
| Cellular Bands | LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/5/8 |
| US Version Cellular | |
| Suitable Region | United States, Canada |
| Max DL Speed | 150 Mbps |
| Max UL Speed | 50 Mbps |
| Advanced | DL 2×2 MIMO |
| Cellular Bands | LTE-FDD: B2/4/5/12/13/14/66/71 WCDMA: B2/4/5 |
| AU Version Cellular | |
| Suitable Region | Latin America, Australia, New Zealand |
| Max DL Speed | 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD) |
| Max UL Speed | 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD) |
| Advanced | DL 2×2 MIMO |
| Cellular Bands | LTE-FDD: B1/2/3/4/5/7/8/28/66 LTE-TDD: B40 WCDMA: B1/2/4/5/8 GSM: B2/3/5/8 |
| CN Version Cellular | |
| Suitable Region | China, India |
| Max DL Speed | 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD) |
| Max UL Speed | 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD) |
| Advanced | DL 2×2 MIMO |
| Cellular Bands | LTE-FDD: B1/3/5/8 LTE-TDD: B34/38/39/40/41 WCDMA: B1/5/8 GSM: B3/8 |
| Wireless | |
| 2.4 GHz Wi-Fi Speed | 300 Mbps |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 2x Fixed |
| 2.4 GHz Antenna Gain Max | 3.54 dBi |
| Beamforming | True |
| FEM or PA/LNA | 2.4 GHz: 2× Internal |
| Range Performance | Max: 130 m (427 ft) |
| Wall Performance | One wooden wall <10 cm One concrete wall <10 cm |
| Interfaces | |
| Physical Buttons | Power On/Off, WPS, Reset |
| 10/100 Mbps RJ45 Ports | 4 (1x WAN/LAN configurable, 3x LAN) |
| FXS Ports | 1x RJ11 (VoLTE) |
| LED Indicators | System, Internet, Wi-Fi, WPS, Phone, LAN, WAN/LAN, Signal Strength |
| Power | |
| Power Methods | DC via DC Jack |
| DC Input | 12V 1A |
| Power Adapter | Input: 100-240V AC, 50/60 Hz Output: 12V 1A DC |
| Max Power Consumption | 8W |
| Idle Power Consumption | 4W |
| Reliability | |
| EMC | ESD: Contact 4kV; Air 8kV |
| Environment | |
| Operating Temperature | 0 C – 40 C (32 F -104 F) |
| Storage Temperature | -40 C – 70 C (-40 F – 158 F) |
| Operating Humidity | 10% – 90% non-condensing |
| Storage Humidity | 5% – 90% non-condensing |
| Certifications | FCC, CE |
| Mechanical | |
| Dimension | 190x50x148.8 mm (7.48×1.97×5.86 in) |
| Installation | Desktop |
| Package Contents | |
| LT400V, Power Adapter, Ethernet Cable, Installation Guide | |
Download Cudy LT400V Datasheet
