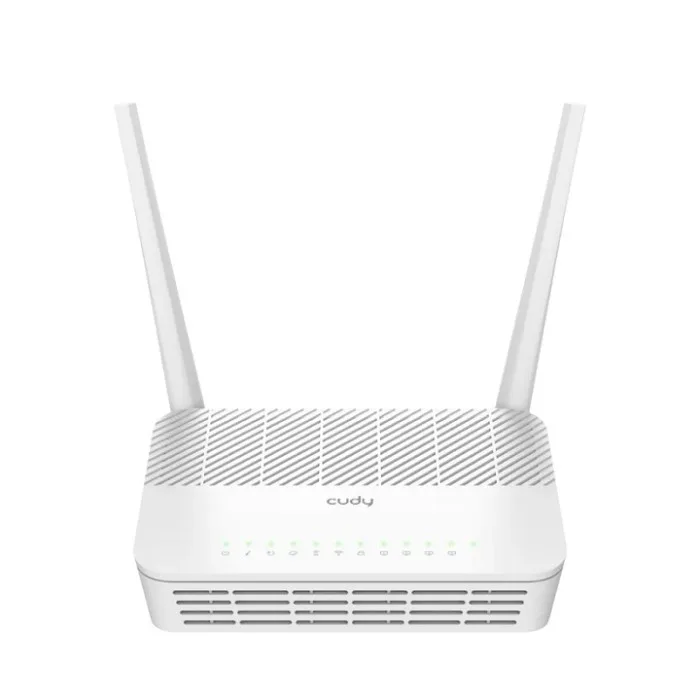

Cudy Cudy GP1200
| Device Specifications – Model GP1200 1.0 | |
|---|---|
| CPU | |
| CPU Details | 1.15 GHz Dual-Core |
| Memory/Storage | |
| Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 256 MB (2 Gbit) DDR3 |
| xPON | |
| Protocols | GPON (ITU G.984 | Class B+), EPON (802.3ah) |
| Speed | GPON: 2.488 Gbps Down / 1.244 Gbps Up EPON: 1.25 Gbps Down/Up |
| Wavelength | TX: 1310 nm RX: 1490 nm |
| Max Transmission Distance | 20 km |
| Wireless | |
| 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 2x Fixed |
| 5 GHz Antenna Gain Max | 5 dBi |
| 2.4 GHz Antenna Gain Max | 5 dBi |
| FEM or PA/LNA | 5 GHz: 2x Internal 2.4 GHz: 2x Internal |
| Beamforming | True |
| Range Performance | Max: 170 m (558 ft) |
| Wall Performance | Two wooden walls <10 cm One concrete wall <20 cm |
| Interfaces | |
| SC/APC Port | 1 |
| Gigabit RJ45 Ports | 4 (1x WAN/LAN, 3x LAN) |
| USB-A 2.0 Ports | Optional for ISP Order |
| LED Indicators | Power, PON, LOS, Internet, 2.4 GHz, 5 GHz, WPS, LAN |
| Physical Buttons | |
| Power On/Off, Reset, WPS, Wi-Fi On/Off | |
| Power | |
| Power Methods | DC via DC Jack |
| DC Input | 12V 1A |
| Power Adapter | Input: 100–240V- 50/60 Hz Output: 12V=1A |
| Reliability | |
| Operating Temperature | 0 C – 40 C (32 F -104 F) |
| Storage Temperature | -40 C – 70 C (-40 F – 158 F) |
| Operating Humidity | 10% – 90% non-condensing |
| Storage Humidity | 5% – 95% non-condensing |
| Certifications | FCC, CE |
| Mechanical | |
| Installation | Desktop, Wall-mount |
| Dimension | 173×123.8×33 mm (6.81×4.87×1.3 in) |
| Product Weight | 288 g (10.16 oz.) |
| Package Content | |
| GP1200, Power Adapter, Ethernet Cable, Installation Guide | |
