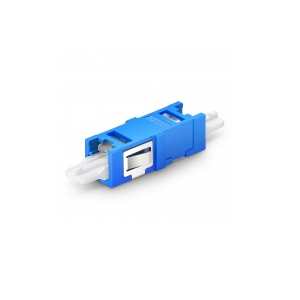

CS?/UPC to CS?/UPC Duplex Single Mode Plastic Fiber Optic Adapter
Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
The CS? adapter can link two CS? connectors precisely, allowing the light sources to be transmitted at most and lower the loss as much as possible. And this adapter has smaller size and higher density when comparing to a LC duplex adapter. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility.
Description
Connector Type
Senko CS?-CS?
Body Style
Single Channel (2F)
Polish Type
UPC
Fiber Mode
Single Mode
Insertion Loss
?0.2dB
Durability
500 times
Mounting Type
Reduced Flanged
Alignment Sleeve Material
Zirconia Ceramic
Color
Blue
Flammability Rate
UL94-V0
Package Quantity
1
RoHS Compliancy Status
Compliant
