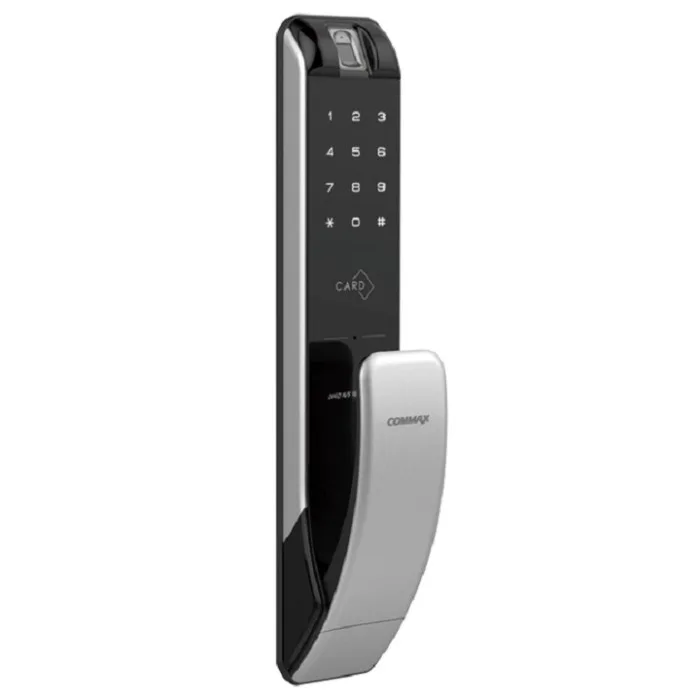

Commax Commax CDL-220PB
| COMMAX CDL‑220PB Push‑Pull Smart Door Lock • Specs | |
|---|---|
| Applicable Door | Normal fire door, thickness 40 mm – 60 mm |
| Access Methods | – PIN (4–12 digits, up to 4 codes) – RFID Smart Key (up to 30 cards) – Bluetooth App (smartphone via BLE) – Mechanical Key |
| Remote/Wireless | Optional remote control via wallpad/video intercom module |
| Power Source | DC 6 V via 8 x AA (LR6) alkaline batteries |
| Emergency Power | DC 9 V alkaline battery (square 9 V block, optional) |
| Product Type | Fireproof, temperature‑sensor, master‑key door lock variants |
| Temperature Alarm | Temperature sensor triggers alarm and auto-unlock at – 60 C + 5 C |
| Optional Remote Module | CDL‑447 |
| Dimensions (Outer Body) | 95.0 mm (W) x 28.8 mm (D) x 95.0 mm (H) |
| Dimensions (Inner Body) | 81.3 mm (W) x 36.2 mm (D) x 163.5 mm (H) |
