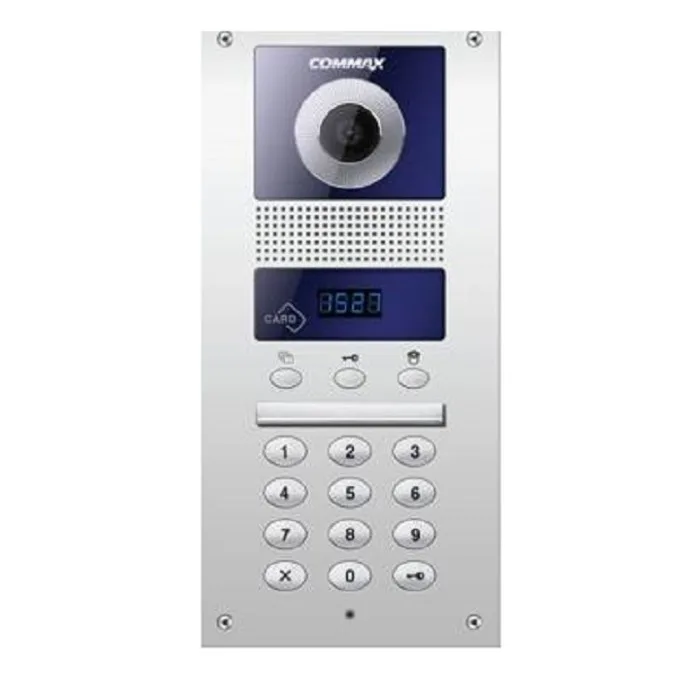

Commax Commax DRC-GUC/RF1
| Specification | Details |
|---|---|
| Power Source | DC 12V, 1A |
| Mount Type | Flush-mounted type |
| Operating Temperature | -10C – +40C |
| Wiring | UTP (Cat. 5e) |
| Distance | Max. 300m (VD-103(N)) |
| RFID Card | 13.56MHz (Optional) |
| Image Sensor | Color C-MOS 1/4 inch |
| Angle of View | Horizontal: 68, Vertical: 55 |
| Minimum Illumination | 0.1 Lux (Up to 300mm from camera to object) |
| Lighting | Color: white LED x 2 |
| Dimension (mm) | 130 (W) x 315 (H) x 10(38) (D) |
