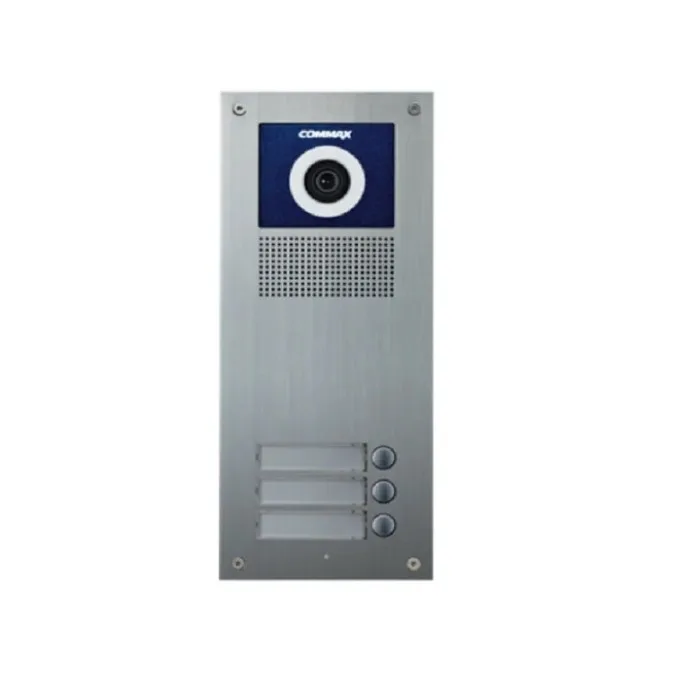

Commax Commax DRC-3UC
| Specification | Details |
|---|---|
| User Capacity | Up to 3 subscribers |
| Mounting Type | Flush-mounted (in-wall) |
| Material | Anodized aluminum |
| Camera | 1/3″ CCD sensor |
| Camera Adjustment | ±12° horizontal and vertical |
| Viewing Angle | 68° horizontal / 55° vertical |
| Lighting | White LED illumination up to 30 cm |
| Night Vision | Infrared LEDs for low-light conditions |
| Audio | Bidirectional communication via built-in microphone and speaker |
| Relay Output | NO contact for electric lock control |
| Power Supply | 12V DC (from external adapter) |
| Wiring | 4-wire connection (2 for power, 2 for video/audio) |
| Operating Temperature | -10C to +50C |
| Dimensions (Panel) | 248 x 130 x 10 mm |
| Dimensions (Back Box) | 238 x 121 x 36 mm |
