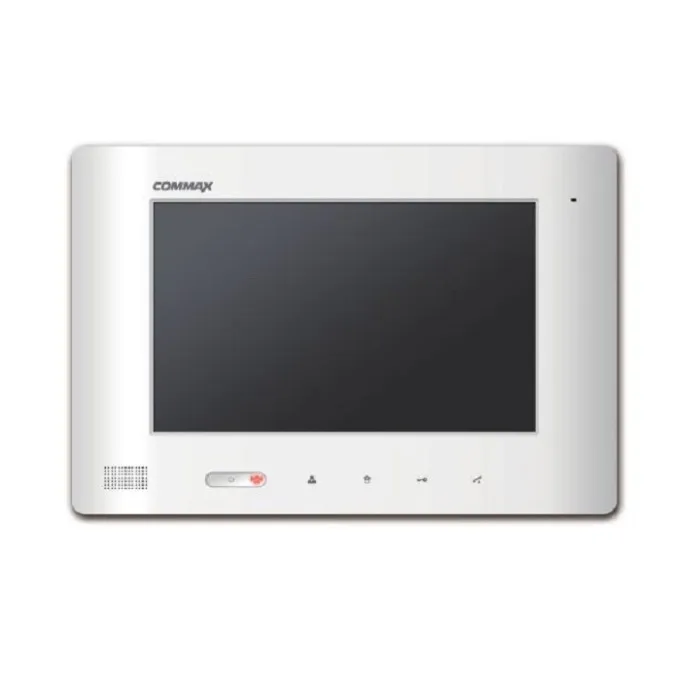

Commax Commax CDP-1020IB
| Intercom & Monitoring System – Wiring & Specs | |
|---|---|
| Telephone Wiring | 2 wires |
| Door Camera Wiring | 4 wires |
| Lobby Panel Wiring | 4 wires (shared/common) |
| Guard Station Wiring | 8 wires (shared/common) |
| Slave Unit Wiring | 6 wires |
| Emergency Switch Wiring | 2 wires |
| Sensor Wiring | 12 wires |
| Power Source | 14V DC, 1.8A |
| Communication Mode | Hands‑free |
| Display | 25.65 cm (10.1″) Color TFT‑LCD (digital) |
| Call Tone – Door Camera | Chime, 3 melody options x 2 rings |
| Call Tone – Guard Station | Melody tone |
| Call Tone – Telephone | Ringer |
| Distance – Door Camera | Up to 28 m ( 0.5 mm cable) |
| Distance – Guard Station | Up to 1 km ( 0.5 mm cable) |
| Distance – Lobby Panel | Up to 300 m (over coaxial cable) |
| Channels | Guard Station: 3 channels Lobby Panel: 1 channel |
