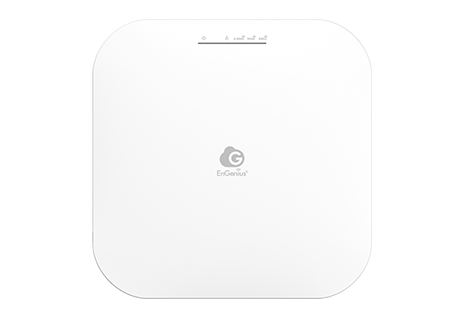

Cloud Managed Wi-Fi 6E 44 Indoor Access Point

RS-485, 1 Pair 24AWG (7×32) Tinned Copper, PO Insulation, Overall Beldfoil?+Tinned Copper Braid(90%) Shield, LSZH Outer Jacket, CPR Dca

(د.إ) - AED
($) - USD

SKU: ECW336 Categories: Access points, Engenius, ENGENIUS Access Points Tag: ENGENIUS

Description
Shipping & Delivery

Description

Suitable Applications	RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, …); Low Voltage Digital Control (24v, ?); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.

AWG	Stranding	Material	No. of Pairs
24	7×32	TC – Tinned Copper	1

Conductor Count	2
Total Number of Pairs	1

Material	Nominal Diameter	Diameter +/- Tolerance
PE – Polyethylene	1.73 mm	0.05 mm

Number	Color
Pair 1	White/Blue & Blue/White

Type	Layer	Material	Material Trade Name	Coverage [%]	Thickness of Foil	Drainwire Material	Drainwire AWG	Drainwire Construction n x D
Tape	1	Bi-Laminate (Alum+Poly)	Beldfoil?	100%	9 / 23 ?m	TC – Tinned Copper	AWG24/7	7×32
Braid	2	Tinned Copper (TC)		90%

Material	Color	Nominal Diameter	Nominal Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant)	Chrome (RAL 7037)	6.10 mm	0.9 mm

Lay Direction	Twists
Left Hand	5.333 twist/ft

Description	Filler
1 pair and 2 fillers twisted to cable core	Polypropylene (2x) (White, 1.90 mm)

Nominal Conductor DCR	Nominal Outer Shield DCR
78.7 Ohm/km	11.0 Ohm/km

Nom. Capacitance Conductor to Conductor	Nom. Capacitance Conductor to Other Conductor to Shield
42 pF/m	75.5 pF/m

Frequency [MHz]	Nominal Characteristic Impedance
1	120 Ohm

Frequency [MHz]	Nom. Insertion Loss
1 MHz	1.97 dB/100m

Max. Delay Skew	Nominal Delay	Nominal Velocity of Propagation (VP) [%]
66 ns/100m	1.6 ns/ft	66%

Element	Max. Recommended Current [A]
Conductor	2.1 Amps per Conductor

Voltage Rating [V]
300 V

Installation Temp Range	-15?C To +80?C
Storage Temp Range	-45?C To +80?C
Operating Temp Range (Flexible Install)	-15?C To +80?C
Operating Temp Range	-20?C To +75?C
Operating Temp Range (Fixed Install)	-45?C To +80?C

Oil Resistance	IEC 60811-404

Bulk Cable Weight	33 lbs/1000ft
Max. Pull Tension	328 N
Min. Bend Radius During Installation	61 mm
Min. Bend Radius/Minor Axis	2.5 in

CPR Euroclass	Dca-s2,d1,a1
CENELEC Compliance	EN 50290-2-27

Environmental Space	Indoor – Euroclass Dca
EU Directive Compliance	EU Directive 2003/11/EC (BFR)
EU CE Mark	Yes
EU RoHS Compliance Date (yyyy-mm-dd)	2005-01-01

Suitability – Indoor	Yes
Suitability – Non-Halogenated	Yes
Suitability – Sunlight Resistance	Yes

IEC Flammability	IEC 60332-3-24 and IEC 60332-3-22
IEC 60754-1 – Halogen Amount	Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity	2.5 ?S/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH	4.3
IEC 61034-2 – Smoke Density Min. Transmittance	60%

Plenum (Y/N)	No
Footnote	C – CRATE REEL PUT-UP.

Update and Revision	Revision Number: 0.526 Revision Date: 08-27-2021

Part Numbers

Item #	Color	Put-Up Type	Length	UPC/EAN
9841NH.00152	Chrome	Reel	152 m	8719605022929
9841NH.00305	Chrome	Reel	305 m	8719605022936
9841NH.K0305	Chrome	Reel	305 m	8719605177629
9841NH.00500	Chrome	Reel	500 m	8719605022943
