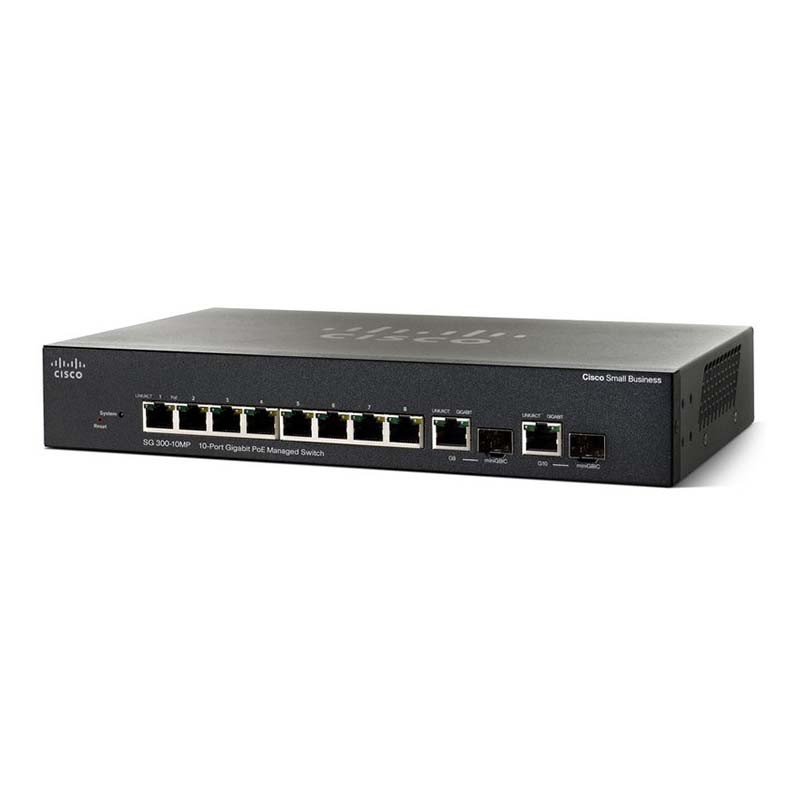

Cisco SG300-10MP SMB Switch Specification |
|
Product Number | SG300-10MP |
Product Description | 8 10/100/1000 Maximum PoE ports with 124W power budget – 2 combo mini-GBIC ports |
General | |
Device Type | Switch – 10 ports – L3 – managed |
Enclosure Type | Desktop, rack-mountable – 1U |
Ports | 8 x 10/100/1000 + 2 x combo Gigabit SFP |
Power Over Ethernet (PoE) | PoE |
Performance | Switching capacity : 20 Gbps Forwarding performance (64-byte packet size) : 14.88 Mpps |
MAC Address Table Size | 16K entries |
Capacity | 4K Active VLANs |
Routing Protocol | Static IPv4 routing |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
Jumbo Frame Support | 10KB |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features |
Layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, fanless |
Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
RAM | 128 MB |
Flash Memory | 16 MB flash |
Status Indicators | Link activity, port transmission speed, system |
Expansion / Connectivity | |
Interfaces | 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 1 x console – 9 pin D-Sub (DB-9) – management 2 x SFP (mini-GBIC) |
Power | |
Power Device | Power adapter – external |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Miscellaneous | |
Width | 11 in |
Depth | 6.7 in |
Height | 1.5 in |
Weight | 2.7 lbs |
Cables Included | 1 x serial cable |
Rack Mounting Kit | Included |
MTBF | 67,008 hour(s) |
Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
Localization | Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
Manufacturer Warranty | |
Service & Support | Limited lifetime warranty |
Service & Support Details | Limited warranty – replacement – lifetime – response time: next business day Technical support – web support – 1 year Technical support – phone consulting – 1 year |
Environmental Parameters | |
Min Operating Temperature | 32 F |
Max Operating Temperature | 104 F |
Humidity Range Operating | 10 – 90% (non-condensing) |
Min Storage Temperature | -4 F |
Max Storage Temperature | 158 F |
Humidity Range Storage | 10 – 90% (non-condensing) |
Cisco SG300-10MP SMB Switch
Flowcontrol,Layer2switching,auto negotiation,autouplink(autoMDI/MDIX),Weighted Round Robin(WRR)queuing,quality of service(QoS),cable diagnostics,loop detection,Energy Efficient Ethernet
SKU:
SG300-10MP
Categories: Cisco, Switches, Switches
Tags: Cisco SG300-10MP SMB Switch, Cisco Switches
