SG250-10P SMB Switch: High-Performance & Scalable

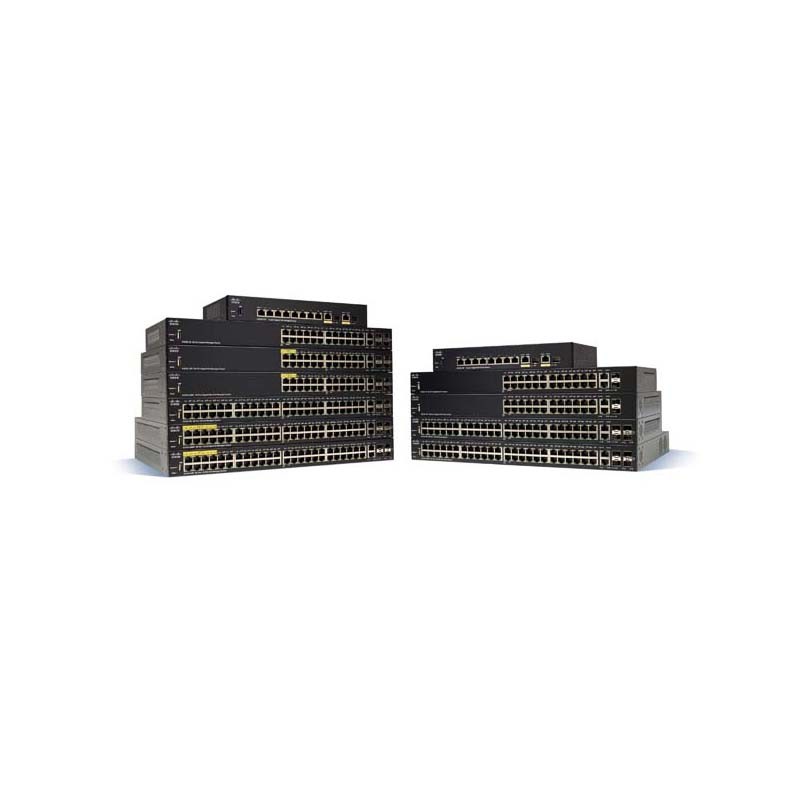

Cisco SG250-10P SMB Switch

Layer 2 switching, Layer 3 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping,
Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing,
Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support,
Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree (MSTP),
Trivial File Transfer Protocol (TFTP) support, access control list (ACL) support, quality of service (QoS), jumbo frames support,

Product code	SG250-10P
Device type	Switch, 1 G, 10 ports
Enclosure type	Compact, 1 unit
Ports	8 x 10/100/1000, 2 x Gigabit SFP/RJ-45
Power over Ethernet (PoE)	PoE+ (8 ports, 62W)
Performance	20-Gbps switching capacity, 14.88-Mpps forwarding performance (64-byte packet size)
MAC address table size	8k entries
Capacity	256 active VLANs
Jumbo frame	Yes
Remote management protocol	SNMP, RMON, HTTP, HTTPS, TFTP, Telnet, SSH
Features	Layer 2 switching, Layer 3 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree (MSTP), Trivial File Transfer Protocol (TFTP) support, access control list (ACL) support, quality of service (QoS), jumbo frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol, Auto SmartPorts
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3af PoE, IEEE 802.3at PoE, IEEE 802.3az
RAM	512 MB
Flash memory	256 MB flash
Status indicators	System, link/speed per port
Interfaces	8 x 10BASE-T/100BASE-TX/1000BASE-T, RJ-45 (PoE+), 2 x Gigabit SFP/RJ-45 (60W PoE PD)
Power device	Power supply, external
Voltage required	AC 120/230V (50/60 Hz)
Width	11.0 in (280 mm)
Depth	6.69 in (170 mm)
Height	1.45 in (44 mm)
Weight	2.65 lb (1.2 kg)
Mounting kit	Included
MTBF	205,647 hours
Compliant standards	UL 60950, FCC Part 15 A, CSA 22.2
Service and support	Limited lifetime warranty
Service and support details	Limited warranty: lifetime; technical support (Web): 1 year; technical support (phone consulting): 1 year
Minimum operating temperature	32 F (0 C)
Maximum operating temperature	122 F (50 C)
Humidity range operating	10-90% (noncondensing)
Minimum storage temperature	-4 F (-20 C)
Maximum storage temperature	158 F (70 C)
Humidity range storage	10-90% (noncondensing)
