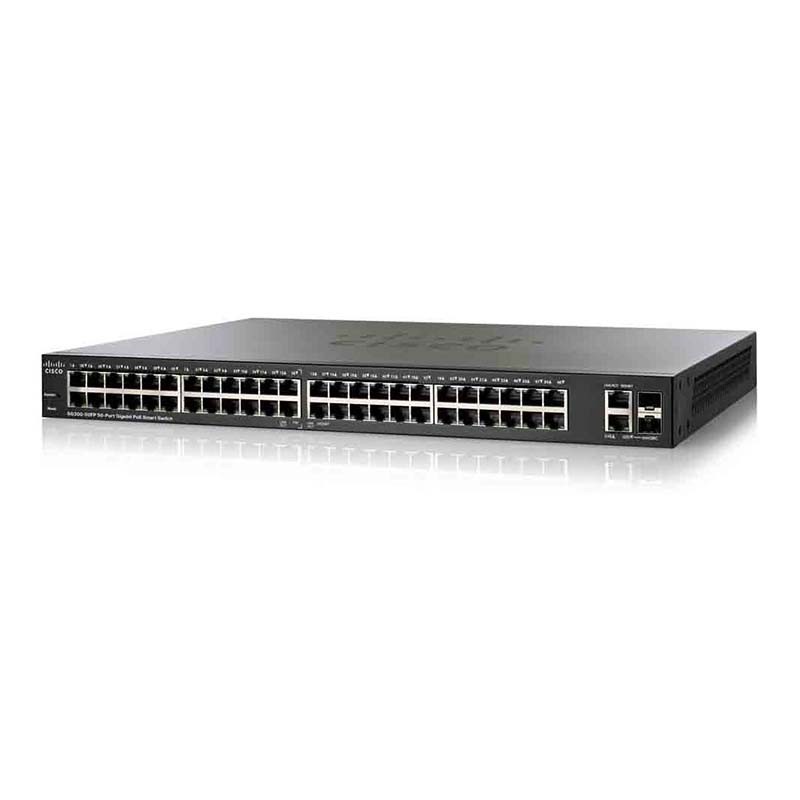

Cisco SG200-50FP Switch: Affordable & Flexible

Cisco SG200-50FP Switch

Cisco SG200-50FP Switch is a series of affordable smart switch that combines powerful network performance and reliability with the essential network management features you need for a solid business network. This expandable Gigabit Ethernet switch provides basic management, security, and quality-of-service (QoS) features beyond those of an unmanaged or consumer-grade switch, at a lower cost than managed switch. And with an easy-to-use web user interface, Cisco discovery protocol and Cisco Smartports you can deploy and configure a rock-solid business network in minutes.

Cisco SG200-50FP Switch Specification
Device Type	Switch – 50 ports
Enclosure Type	Rack-mountable
Ports	48 x 10/100/1000 + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE
Performance	Switching capacity : 74.41 Mpps : Forwarding performance (64-byte packet size) : 100 Gbps
MAC Address Table Size	8000 entries
Jumbo Frame Support	Yes
Remote Management Protocol	SNMP, RMON, HTTP, TFTP
Encryption Algorithm	MD5
Authentication Method	RADIUS
Features	Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, RSTP, TFTP support, QoS, Jumbo Frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol, Auto SmartPorts
Compliant Standards	IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1x, 802.1w RSTP, 802.3af PoE
RAM	128 MB
Flash Memory	16 MB
Status Indicators	Link activity, port transmission speed, system, PoE
Expansion and Connectivity
Interfaces	50 x 10BASE-T/100BASE-TX/1000BASE-T – RJ-45 \| 2 x SFP (mini-GBIC)
Power
Power Device	Power supply – internal
Voltage Required	100-240V AC/50-60 Hz universal input
Miscellaneous
Width	17.3 in
Depth	10.1 in
Height	1.7 in
Weight	8.7 lbs
Mounting Kit	Included
MTBF	208,976 hour(s)
Compliant Standards	UL 60950, FCC Part 15 A, CSA 22.2
Localization	Chinese (simplified), English, German, French, Italian, Spanish
Manufacturer Warranty
Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty – lifetime : Technical support – web support – 1 year : Technical support – phone consulting – 1 year
Environmental Parameters
Min Operating Temperature	32 F
Max Operating Temperature	104 F
Humidity Range Operating	10 – 90% (non-condensing)
Min Storage Temperature	-4 F
Max Storage Temperature	158 F
Humidity Range Storage	10 – 90% (non-condensing)
