Cisco SG200-26P SMB Switch: Flexible & Affordable

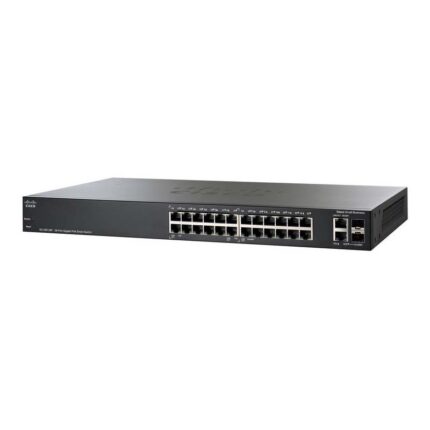

Cisco SG200-26P SMB Switch

The Cisco SG200-26P SMB Switch is intended to improve business networks with advanced security features and solid performance. This switch supports Layer 2 switching and provides key network management features like VLAN support and IGMP snooping. With a switching capacity of 38.69 Mpps and a forwarding rate of 52 Gbps, it ensures that your devices have fast communication. Its Power over Ethernet (PoE) functionality simplifies network implementation by providing power delivery via the same cable as data, making it an excellent solution for scalable commercial applications.

GET QUOTE

Cisco SG200-26P SMB Switch Specification
Device Type	Switch – 26 ports
Enclosure Type	Rack-mountable
Ports	24 x 10/100/1000 + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE
Performance	Switching capacity : 38.69 Mpps : Forwarding performance (64-byte packet size) : 52 Gbps
MAC Address Table Size	8000 entries
Jumbo Frame Support	Yes
Remote Management Protocol	SNMP, RMON, HTTP, TFTP
Encryption Algorithm	MD5
Authentication Method	RADIUS
Features	Layer 2 switching, DHCP support, power over Ethernet (PoE), BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP), Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol, Auto SmartPorts
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, 802.3af PoE
RAM	128 MB
Flash Memory	16 MB
Status Indicators	Link activity, port transmission speed, system, PoE
Expansion and Connectivity
Interfaces	26 x 10Base-T/100Base-TX/1000Base-T – RJ-45 \| 26 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE \| 2 x SFP (mini-GBIC)
Power
Power Device	Power supply – internal
Voltage Required	100-240V AC/50-60 Hz universal input
Miscellaneous
Width	17.3 in
Depth	10.1 in
Height	1.7 in
Weight	8.4 lbs
Mounting Kit	Included
MTBF	218,842 hour(s)
Compliant Standards	UL 60950, FCC Part 15 A, CSA 22.2
Localization	Chinese (simplified), English, German, French, Italian, Spanish
Manufacturer Warranty
Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty – lifetime : Technical support – web support – 1 year : Technical support – phone consulting – 1 year
Environmental Parameters
Min Operating Temperature	32 F
Max Operating Temperature	104 F
Humidity Range Operating	10 – 90% (non-condensing)
Min Storage Temperature	-4 F
Max Storage Temperature	158 F
Humidity Range Storage	10 – 90% (non-condensing)
