Cisco SG200-26FP SMB Switch Specification | |
Device Type | Switch – 26 ports |
Enclosure Type | Rack-mountable |
Ports | 24 x 10/100/1000 + 2 x combo Gigabit SFP |
Power Over Ethernet (PoE) | PoE |
Performance | Switching capacity : 38.69 Mpps : Forwarding performance (64-byte packet size) : 52 Gbps |
MAC Address Table Size | 8000 entries |
Jumbo Frame Support | Yes |
Remote Management Protocol | SNMP, RMON, HTTP, TFTP |
Encryption Algorithm | MD5 |
Authentication Method | RADIUS |
Features | Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, RSTP, TFTP support, QoS, Jumbo Frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol, Auto SmartPorts |
Compliant Standards | IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1x, 802.1w RSTP, 802.3af PoE |
RAM | 128 MB |
Flash Memory | 16 MB |
Status Indicators | Link activity, port transmission speed, system, PoE |
Expansion and Connectivity | |
Interfaces | 26 x 10BASE-T/100BASE-TX/1000BASE-T – RJ-45 | 2 x SFP (mini-GBIC) |
Power | |
Power Device | Power supply – internal |
Voltage Required | 100-240V AC/50-60 Hz universal input |
Miscellaneous | |
Width | 17.3 in |
Depth | 10.1 in |
Height | 1.7 in |
Weight | 8.7 lbs |
Mounting Kit | Included |
MTBF | 218,842 hour(s) |
Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
Localization | Chinese (simplified), English, German, French, Italian, Spanish |
Manufacturer Warranty | |
Service & Support | Limited lifetime warranty |
Service & Support Details | Limited warranty – lifetime : Technical support – web support – 1 year ? Technical support – phone consulting – 1 year |
Environmental Parameters | |
Min Operating Temperature | 32 F |
Max Operating Temperature | 104 F |
Humidity Range Operating | 10 – 90% (non-condensing) |
Min Storage Temperature | -4 F |
Max Storage Temperature | 158 F |
Humidity Range Storage | 10 – 90% (non-condensing) |
“Cisco PWR-C5-600WAC” has been added to your cart. Continue shopping
“Tplink Archer A10 AC2600 MU-MIMO WiFi Router” has been added to your cart. Continue shopping
“Tplink RE450 AC1750 Wi-Fi Range Extender” has been added to your cart. Continue shopping

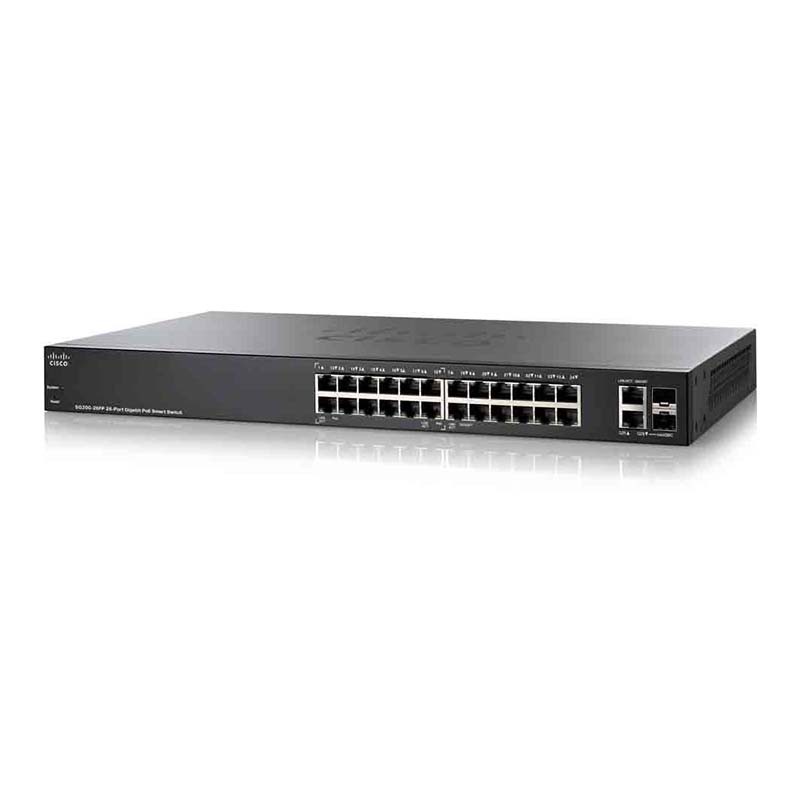

Cisco SG200-26FP SMB Switch
Cisco 200 series switch is a series of affordable smart switch that combines powerful network performance and reliability with the essential network management features you need for a solid business network. This expandable Gigabit Ethernet switch provides basic management, security, and quality-of-service (QoS) features beyond those of an unmanaged or consumer-grade switch, at a lower cost than managed switch. And with an easy-to-use web user interface, Cisco discovery protocol and Cisco Smartports you can deploy and configure a rock-solid business network in minutes.
