Cisco SF300-24PP SMB Switch Specification |
|
Product Number | SF300-24PP |
Product Description | 24 10/100 PoE+ ports with 180W power budget, 2 10/100/1000 ports – 2 combo mini-GBIC ports |
General | |
Device Type | Switch – 24 ports – L3 – managed |
Enclosure Type | Desktop, rack-mountable – 1U |
Ports | 24-port 10/100 + 4 x Gigabit SFP (2 combo) |
Power Over Ethernet (PoE) | POE and POE+ |
Performance | Switching capacity : 12.8 Gbps Forwarding performance (64-byte packet size) : 9.52 Mpps |
MAC Address Table Size | 16K entries |
Capacity | 4K Active VLANs |
Routing Protocol | Static IPv4 routing |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
Jumbo Frame Support | 9KB |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features |
Layer 3 switching, Layer 2 switching, DHCP support, VLAN support, IGMP snooping, syslog support, DoS attack prevention, port mirroring, DiffServ support, weighted round-robin (WRR) queuing, broadcast storm control, IPv6 support, multicast storm control, unicast storm control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, access control list (ACL) support, quality of service (QoS), jumbo frames support, MLD snooping |
Compliant Standards | |
RAM | 128 MB |
Flash Memory | 16 MB flash |
Status Indicators | Link activity, port transmission speed, system |
Expansion / Connectivity | |
Interfaces | 8 x 10Base-T/100Base-TX – RJ-45 – PoE 1 x console – 9 pin D-Sub (DB-9) – management 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 / SFP (combo) |
Power | |
Power Device | Power supply – internal |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Miscellaneous | |
Width | 17.3 in |
Depth | 10.1 in |
Height | 1.45 in |
Weight | 8.25 lbs |
Cables Included | 1 x serial cable |
Rack Mounting Kit | Included |
MTBF | 171,504 hours (@40C) |
Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
Localization | Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
Manufacturer Warranty | |
Service & Support | Limited lifetime warranty |
Service & Support Details | Limited warranty – replacement – lifetime – response time: next business day Technical support – web support – 1 year Technical support – phone consulting – 1 year |
Environmental Parameters | |
Min Operating Temperature | 32 F |
Max Operating Temperature | 104 F |
Humidity Range Operating | 10 – 90% (non-condensing) |
Min Storage Temperature | -4 F |
Max Storage Temperature | 158 F |
Humidity Range Storage | 10 – 90% (non-condensing) |

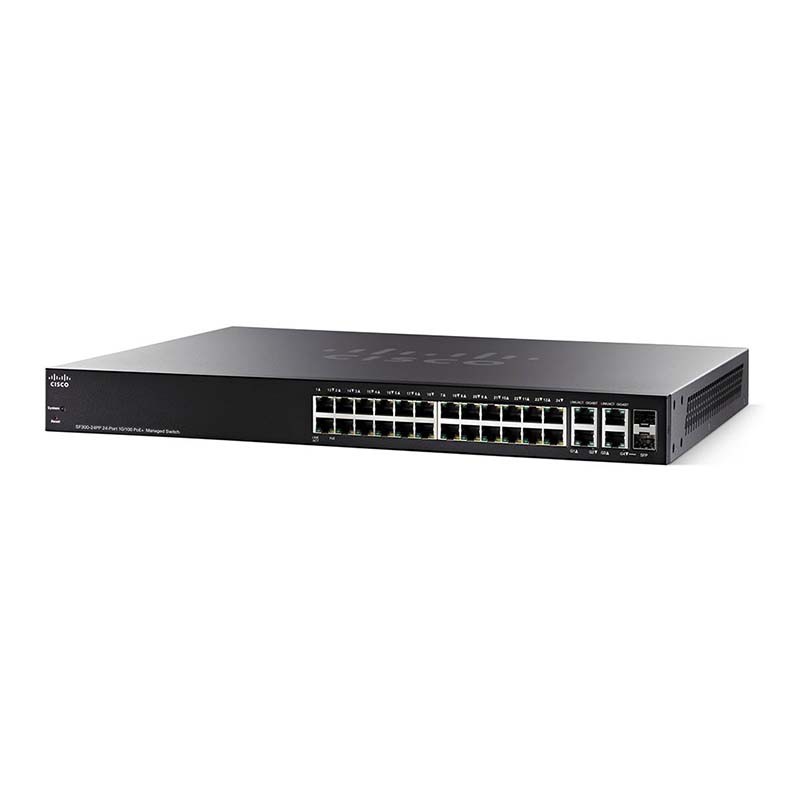

Cisco SF300-24PP SMB Switch
The Cisco SF300-24PP SMB Switch is a broad portfolio of fixed-configuration managed Ethernet switches. Models are available with 8 to 48 ports of Fast Ethernet and 10 to 52 ports of Gigabit Ethernet connectivity, providing optimal flexibility to create the right network foundation for your business.The Cisco SF300-24PP provides 24 10/100 PoE+ ports with a 180W power budget, 2 10/100/1000 ports, and 2 combo mini-GBIC ports.
