| General |
|
| Device type |

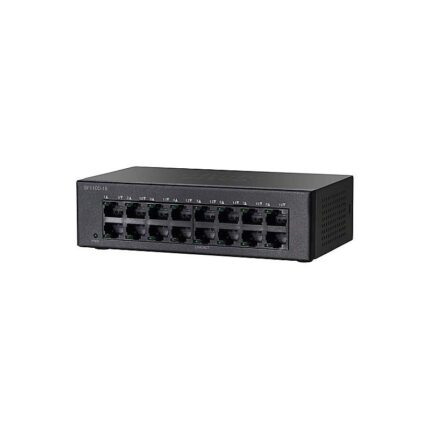

Switch – 16 ports – unmanaged |
| Enclosure type |
Desktop |
| Ports |
16 x 10/100 |
| Power over Ethernet (PoE) |
N/A |
| Performance |
Switching capacity: 3.2 Gbps Forwarding performance (64-byte packet size) : 2.4 Mpps |
| MAC address table size |
8000 entries |
| Jumbo frame support |
N/A |
| Features |
Flow control, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, quality of service (QoS), cable diagnostics, loop detection, Energy Efficient Ethernet |
| Compliant standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1p, IEEE 802.3x |
| Status indicators |
Power, link/activity, cable diagnostics, loop detection |
| Expansion and Connectivity |
|
| Interfaces |
16 x 10Base-T/100Base-TX – RJ-45 |
| Power |
|
| Power device |
Power adapter – external |
| Voltage required |
DC 12 V |
| Electric current required |
1.00 Amps |
| Miscellaneous |
|
| Width |
5.1 in |
| Depth |
5.1 in |
| Height |
1.5 in |
| Weight |
16.5 oz |
| Fanless |
Yes |
| Compliant standards |
UL 60950, FCC CFR47 Part 15, CSA 22.2 |
| Localization |
Chinese (simplified), German, French, Italian, Spanish, Japanese |
| Software/System Requirements |
|
| OS required |
N/A |
| Manufacturer Warranty |
|
| Service and support |
Limited lifetime warranty |
| Service and support details |
Limited warranty – replacement – lifetime Limited warranty – power supply and fans – 1 year Technical support – phone consulting – 1 year |
| Environmental Parameters |
|
| Min operating temperature |
32 F |
| Max operating temperature |
104 F |
| Humidity range operating |
10 – 90% (non-condensing) |
| Min storage temperature |
-4 F |
| Max storage temperature |
158 F |
| Humidity range storage |
10 – 90% (non-condensing) |
