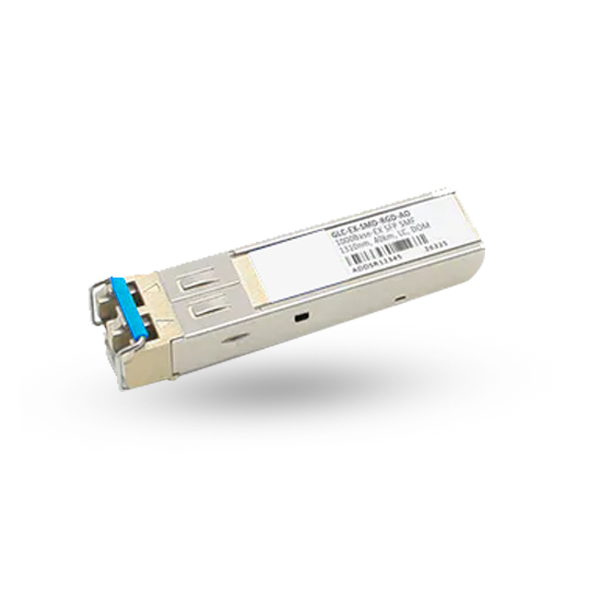

GLC-EX-SMD-RGD
Part No. | GLC-EX-SMD-RGD |
Connector | LC |
DOM | DOM |
Environment | Rugged |
Form Type | SFP |
Media | SMF |
Reach | 40km |
Speed | 1000Base |
Speed Description | 1-Gigabit |
Transceiver Type | EX |
Wavelength | 1310nm |
MTP/ MPO Cable assemblies
Ultra HD Fiber Cables
Fiber Optic panels
MTP / MPO LC Breakout Cassettes
Fiber optic enclosures
Racks and Cabinets
Trunk cables
Copper tools and testers
MTP/ MPO Cable assemblies
Ultra HD Fiber Cables
Fiber Optic panels
MTP / MPO LC Breakout Cassettes
Fiber optic enclosures
Racks and Cabinets
Trunk cables
Copper tools and testers
Part No. | GLC-EX-SMD-RGD |
Connector | LC |
DOM | DOM |
Environment | Rugged |
Form Type | SFP |
Media | SMF |
Reach | 40km |
Speed | 1000Base |
Speed Description | 1-Gigabit |
Transceiver Type | EX |
Wavelength | 1310nm |
Part No. | GLC-EX-SMD-RGD |
Connector | LC |
DOM | DOM |
Environment | Rugged |
Form Type | SFP |
Media | SMF |
Reach | 40km |
Speed | 1000Base |
Speed Description | 1-Gigabit |
Transceiver Type | EX |
Wavelength | 1310nm |
Part Number | C9300-NM-4M |
Product Description | Catalyst 9300 4 x MGig Network Module |
Supported Devices | Cisco Catalyst 9300 Series Switch |
Model: | GLC-EX-SMD Cisco SFP |
Detail: | Cisco GLC-EX-SMD GE SFP, LC Connector, EX transceiver |
Product?Number | GLC-EX-SMD |
Product Description | 1000BASE-EX long-wavelength; with DOM |
Wavelength (nm) | 1310 |
Fiber Type | SMF |
Operating Distance (m) | 40,000 (131,234 ft) |
Temperature Range | EXT |
DOM Support | Yes |
Products/Slots | C3850-NM-4-1G | C3850-NM-2-10G | C3850-NM-4-10G |
Slot 1 | 1-Gigabit SFP module | 1-Gigabit SFP module | 10-Gigabit SFP module |
Slot 2 | 1-Gigabit SFP module | 1-Gigabit SFP module | 10-Gigabit SFP module |
Slot 3 | 1-Gigabit SFP module | ? 1-Gigabit SFP module ? 10-Gigabit SFP module | 10-Gigabit SFP module |
Slot 4 | 1-Gigabit SFP module | ? 1-Gigabit SFP module ? 10-Gigabit SFP module ? 10-Gigabit SFP+ module | 10-Gigabit SFP module |
Cisco? Gigabit Ethernet WAN Module?NIM-1GE-CU-SFP?brings?high-density Small Form-Factor Pluggable (SFP) and copper (RJ-45) 1 Gigabit and 10 Gigabit Ethernet (GE) connectivity to the Cisco 4000 Series Integrated Services Routers (ISRs). Providing maximum flexibility, the modules accelerate applications such as Ethernet WAN access, inter-VLAN routing, and high-speed connectivity to LAN switches and servers.
Model: | GLC-SX-MM GE SFP, LC connector SX transceiver |
Detail: | GE SFP, LC connector SX transceiver |
Product Code | GLC-SX-MM |
Connector Type: | LC multi-mode |
Cabling Type: | Ethernet 1000Base-SX |
Compliant Standards: | IEEE 802.3z |
Connectivity Technology: | Wired |
Data Link Protocol: | Gigabit Ethernet |
Data Transfer Rate: | 1 Gbps |
Features: | Full duplex capability , Hot swap module replacement |
Form Factor: | Plug-in module |
Max Transfer Distance: | 1800 ft |
Optical Wave Length: | 850 nm |
Networking Type: | SFP (mini-GBIC) transceiver module |
Product Code | PWR-C1-715WAC= |
Power supply rated maximum | 715W |
Total output BTU (Note: 1000 BTU/hr = 293W) | 2465 BTU/hr, 715W |
Input-voltage range and frequency | 100-240VAC, 50-60 Hz |
Input current | 10-5A |
Output ratings | -56V at 12.8A |
Output holdup time | 16.7 ms minimum at 100VAC |
Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
Power cord rating | 13A |
Physical specifications | (H x W x D): 1.58 X 3.25 X 12.20 in Weight: 2.8 lb (1.3 kg) |
