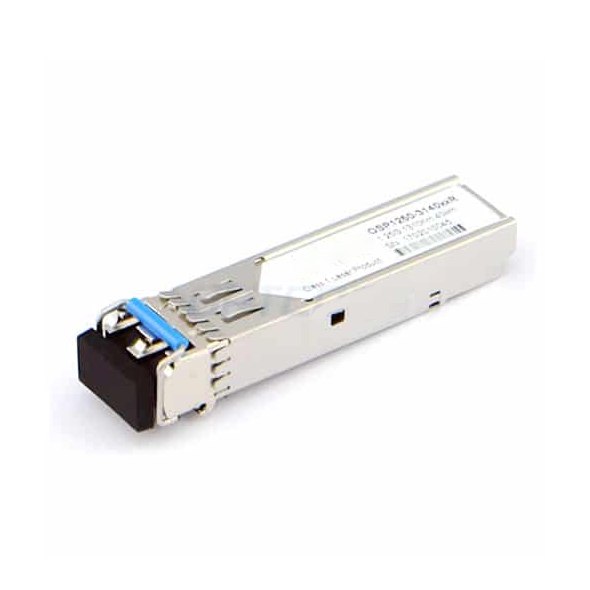

Cisco GLC-EX-SM
Specification
| ? OEM Part Number | GLC-EX-SM | ??Optcore Part Number | OSP1250-3140DCR-CSC |
| ? Form Factor | SFP | ? Data Rate | 1.25Gb/s |
| ? Wavelength | 1310 nm | ? Fiber Type | SMF |
| ??Max Distance | 40 km | ? Optical Components | DFB/PIN |
| ? Transmitter Power | -5 ~ 0?dBm | ? Extinction ratio | > 9?dB |
| ? Receiver Sensitivity | < -24 dBm | ? Receiver Overload | > 0?dBm |
| ? Connector | Duplex LC | ? Digital Diagnostic?Monitoring | Yes |
| ? Environment | Operating: 0?C to 70?C Storage: -40?C to 85?C |
? Weight | 0.025 kg |
| ? Application | 1x Fiber Channel, Switch to Switch InterfaceGigabit Ethernet, Switched Backplane Applications
Router/Server Interface, Other Optical Links |
? Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
