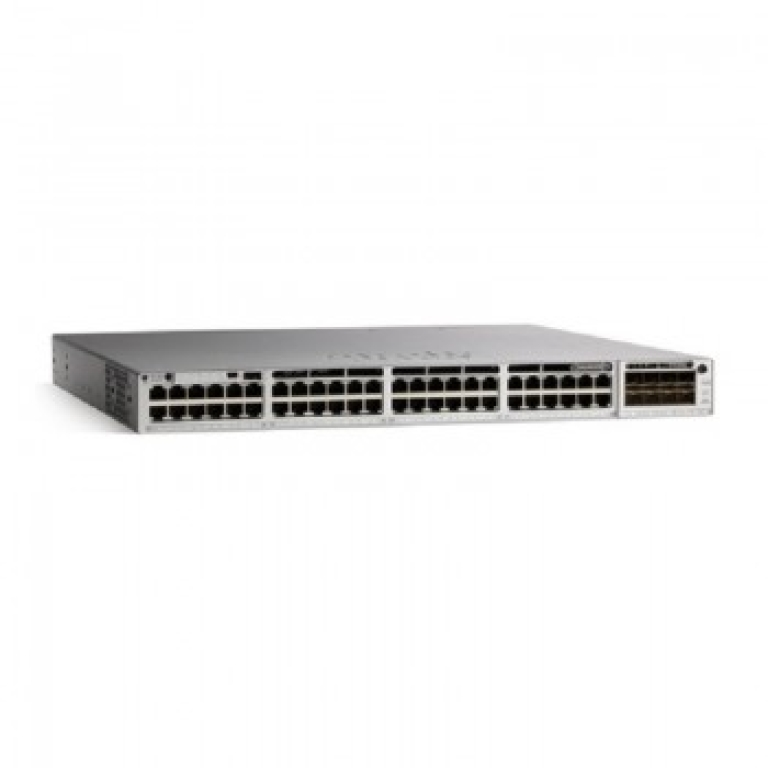

C9300-48S-A Specification |
|
| Product Code | C9300-48S-A |
| Product Description | Catalyst 9300 48 GE SFP Ports, modular uplink Switch |
| Total 10/100/1000 or Multigigabit copper ports | 48x 1G SFP |
| Uplink Configuration | Modular Uplinks |
| Default AC power supply | 715W AC |
| Available PoE power | N/A |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.7 Inches |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default power supply | PWR-C1-715WAC-P |
| Switching capacity | 256 Gbps |
| Stacking bandwidth | 736 Gbps |
| Forwarding rate | 190.47 Mpps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes)
|
| IPv4 routing entries | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| ACL scale entries | 5120 |
| Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models
32 MB buffer for 24 and 48-port Multigigabit |
| FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models
128,000 flows on 24-port Multigigabit |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Total routed ports Catalyst per 9300 Series stack | 448 |
| Wireless bandwidth per switch | Up to 96 Gbps on a 48-port Gigabit Ethernet model |
| Mean time between failures
MTBF (hours) |
281,920 |
| Safety certifications
|
UL 60950-1
CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic emissions certifications | 47 CFR Part 15
CISPR22 Class A EN 300 386 V1.6.1 EN 55022 Class A EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR24 EN 300 386 EN55024 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 IEC 61000-6-1 EN 61000-6-1 |
| Environmental | Reduction of Hazardous Substances
(ROHS) 5 |
