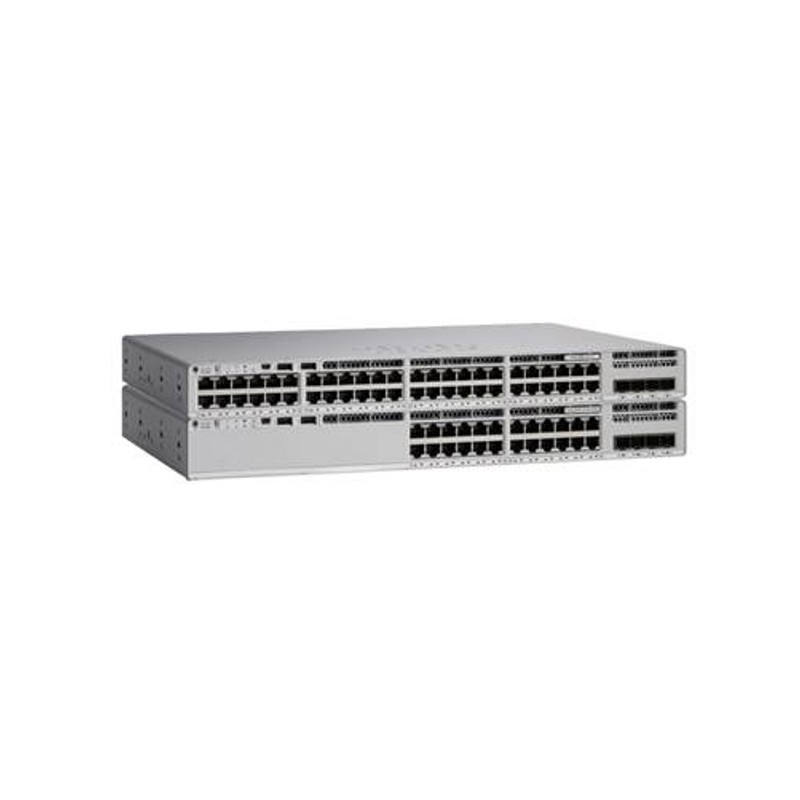

Cisco C9200L-48PXG-2Y-A Catalyst Switch Specification |
|
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) |
| Uplink configuration | 2x 25G fixed uplinks |
| Default primary AC power supply | PWR-C5-1KWAC |
| Fans | Fixed redundant |
| Software | Network Advantage |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 in
4.4 x 44.5 x 35.0 cm |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| Switching capacity | 340 Gbps |
| Forwarding rate | 252.97 Mpps |
| Mean time between failures (hours) | 337,260 |
