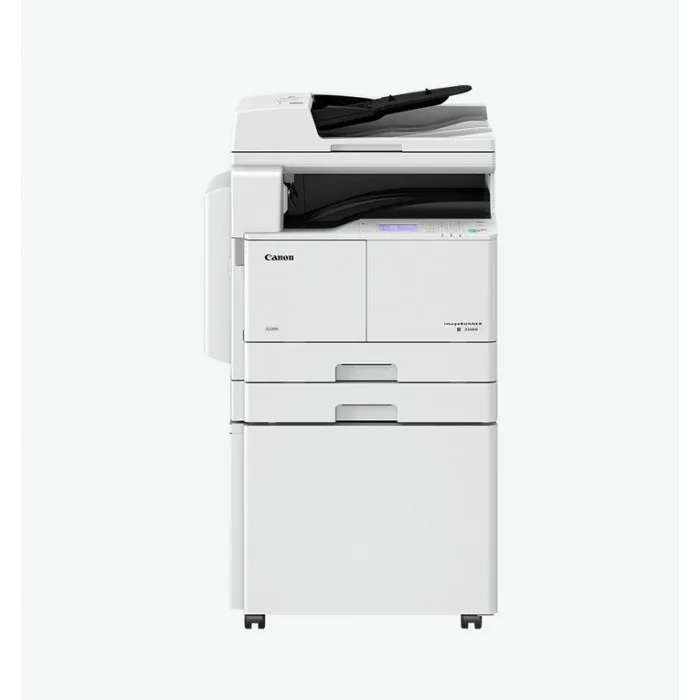

Canon Canon 2206N
Description
Main Unit
Machine type
Monochrome A3 Laser Multifunctional
Core functions
Print, Copy, Scan and optional Send
Processor/Processor speed
Canon Dual Custom Processor/400 MHZ
Control Panel
8.9 cm (3.5 inch) monochrome Touchscreen
Memory
Standard: 512MB RAM
Interface Connection
100Base-TX/10Base-T
Wireless LAN (IEEE 802.11 b/g/n)
USB 2.0 (Device) x 1
Paper Supply Capacity (A4, 80 gsm)
Standard: 330 sheets
Paper Cassette: 250-sheet
Multi-purpose tray: 80-sheet
Maximum: 580 sheets (with optional Cassette Feeding Module-AD1)
Paper Output Capacity (A4, 80 gsm)
250 sheets
Finishing capabilities
Collate, Rotate & Collate, Group, Rotate & Group
Supported-Media-Types (Standard)
Multi-purpose tray:
Plain, Recycled, Thick, Colour, Transparency, Label, Envelope, Bond, Pre-punched
Cassette 1:
Plain, Recycled, Colour, Pre-punched
Supported-Media-Sizes (Standard)
Multi-purpose tray:
Standard size: A3, B4, A4, A4R, B5, B5R, A5, A5R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5]
Custom size: 95 mm x 148 mm to 297 mm x 431.8 mm
Upper Cassette 1:
Standard size: A3, B4, A4, A4R, B5, B5R, A5R
Supported media weights
Multi-purpose tray: 64 to 128 gsm
Upper Cassette 1: 64 to 90 gsm
Optional Duplex Unit: 64 to 90 gsm
Warm-up Time
From Power On: 13 Seconds or Less*
From Sleep Mode: 4.3 Seconds
*Time from device power on, until copy ready (not print reservation)
Dimensions (W x D x H)
622 mm x 589 mm x 499 mm (standard configuration)
622 mm x 606 mm x 600 mm (with optional DADF-AY1)
622 mm x 589 mm x 590 mm (with optional Cassette Feeding Module-AD1)
622 mm x 606 mm x 691 mm (with optional DADF-AY1 and Cassette Feeding Module-AD1)
Installation Space (W x D)
1,023 mm x 1,285 mm (with cassette and left side door open and multi-purpose tray extended)
Weight
Approx. 28.0 kg (standard configuration, toner not included)
Approx. 34.8 kg (with optional DADF-AY1, toner not included)
