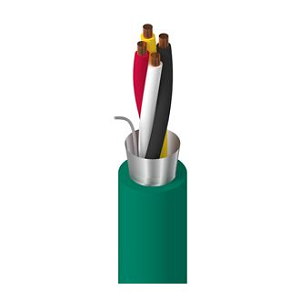

Belden YE00820 KNX, 2PR 0.8mm Sol BC, PVC ins,OS, PVC jkt, Eca

SKU: Belden YE00820.00100 Categories: , , Tag:
Description
Product Overview
Suitable Applications KNX, EIB cable for building management
Physical Characteristics (Overall)
CONDUCTOR
Stranding Material Cross Section Nominal Diameter No. of Conductors
Solid BC – Bare Copper 0.5 mm? 0.8 mm 4
Conductor Count 4
Total Number of Pairs 2
INSULATION
Material Nominal Diameter Diameter +/- Tolerance Nominal Wall Thickness
PVC – Polyvinyl Chloride 1.4 mm 0.05 mm 0.3 mm
COLOR CHART
Number Color
Quad 1 White & Red & Yellow & Black
OUTER SHIELD MATERIAL
Type Material Material Trade Name Coverage [%] Thickness of Foil Drainwire Material Drainwire Diameter
Tape Bi-Laminate (Alum+Poly) Beldfoil? 100% 9 ?m TC – Tinned Copper 0.4 mm
OUTER JACKET MATERIAL
Material Nominal Diameter Diameter – Tolerance Nominal Wall Thickness
PVC – Polyvinyl Chloride 6.1 mm 0.3 mm 1.2 mm
Construction and Dimensions
CABLING
Description
1 quad covered with a polyester foil
Electrical Characteristics
CONDUCTOR DCR
Max. Conductor DCR
37.5 Ohm/km
CAPACITANCE
Nom. Capacitance Conductor to Conductor
50 pF/m
VOLTAGE
Voltage Rating [V]
300 V
Electrical Characteristics Notes Testvoltage 4 kV, 1 min
Temperature Range
Storage Temp Range -30?C to +70?C
Operating Temp Range -20?C To +70?C
Mechanical Characteristics
Min. Bend Radius During Installation 61 mm
Min Setting Radius 30 mm
Standards
CPR Euroclass Eca
Other Specification KNX REG 109/7253/05
Applicable Environmental and Other Programs
Environmental Space Indoor – Euroclass Eca
EU RoHS Compliance Date (yyyy-mm-dd) 2005-01-01
Flammability, LS0H, Toxicity Testing
IEC Flammability IEC 60332-1-2
History
Update and Revision Revision Number: 0.160 Revision Date: 07-30-2021
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
YE00820.00100 Green Reel 100 m 8719605112606
YE00820=00100 Green Reel 100 m 8719605161291
YE00820=K0100 Green Reel 100 m 8719605161253
YE00820.00500 Green Reel 500 m 8719605112637
