Product Overview
| Environmental Space | Outdoor |
|---|---|
| Suitable Applications | For outdoor use in structured (data) wiring systems such as industrial backbone, campus backbone, building backbone (riser) and/or horizontal cabling. For outdoor use in networks for industrial, telecom, cable TV and/or broadcast. Easy to install in ducts, tunnels and trenches and/or tubes. Suitable for Direct Burial. |

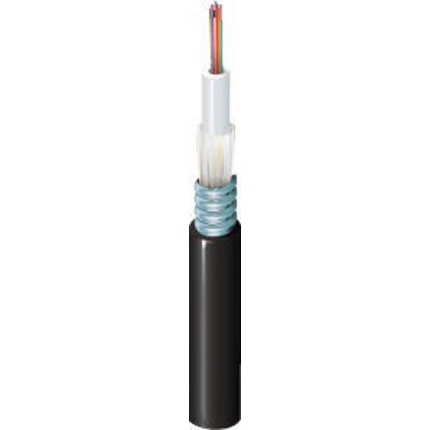

Construction
FIBER CABLE CONSTRUCTION
| Fiber Type | Fiber Grade acc. ITU-T | Fiber Count | Subunit Color | Subunit Color 2 |
|---|---|---|---|---|
| OS2 | G.652D & G.657A1 | 24 | TIA coding (Gxxxxxx.T): Natural | Europe coding (Gxxxxxx.0): Natural |
| Fiber Color Coding | TIA coding (Gxxxxxx.T): Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Violet, Pink, Aqua. With Ringmark: BL, OR, GR, BR, GY, WT, RD, BK, YL, VT, PK, AQ |
|---|---|
| Fiber Color Coding 2 | Europe coding (Gxxxxxx.0): Red, Natural, Yellow, Blue, Green, Violet, Brown, Black, Orange, Aqua, Pink, White. With Ringmark: RD, NA, YL, BL, GR, VT, BR, BK, OR, AQ, PK, WT |
| Cable Core Water Tight | Yes |
|---|---|
| Cable Core Water Blocking | Waterblocking Glass Yarns + Tape |
| Bulk Cable Weight | 81 kg/km |
SubUnit Specifications
| Number of Active Subunits | 1 |
|---|---|
| Number of Subunit Positions | 1 |
Jacket Specifications
| Number of Jackets | Single Jacket |
|---|---|
| Type of Armor | Corrugated Steel Tape |
Outer Jacket
OUTER JACKET MATERIAL
| Material | Color | Nominal Diameter | Ripcord |
|---|---|---|---|
| PE – Polyethylene | Black | 9.0 mm | 1 |
| Table Notes | Standard color: Black. Available colors: Black, Orange, Yellow, Turquoise, Erika Violet, Red, Blue, Green, Brown, Violet, Pink, Grey, White, Lime Green |
|---|
Optical Characteristics
| Fiber Core Diameter | 9 ?m |
|---|---|
| Max Attenuation at 1310 nm | 0.40 dB/km |
| Max Attenuation at 1550 nm | 0.24 dB/km |
| Max Attenuation at 1625 nm | 0.29 dB/km |
Mechanical Characteristics
MECHANICAL TESTS
| Description | Tested Standard | Requirement/Value | According to Family Specification |
|---|---|---|---|
| Cable Min. Bend Radius Installation (Short Term) | IEC 60794-1-21-E6 | 180 mm | IEC 60794-3-10 |
| Cable Min. Bend Radius Operation (Long Term) | IEC 60794-1-21-E11 | 180 mm | IEC 60794-3-10 |
| Cable Max. Tensile Strength Installation (Short Term) | IEC 60794-1-21-E1 | 2400 N (540 lbf) | IEC 60794-3-10 |
| Cable Max. Tensile Strength Operation (Long Term) | IEC 60794-1-21-E1 | 800 N (180 lbf) | IEC 60794-3-10 |
| Cable Max. Crush Resistance Installation (Short Term) | IEC 60794-1-21-E3 | 22 kN/m | IEC 60794-3-10 |
| Cable Max. Crush Resistance Operation (Long Term) | IEC 60794-1-21-E3 | 11 kN/m | IEC 60794-3-10 |
Temperature Range
| Operating Temp Range | -30 ?C to +70 ?C |
|---|---|
| Installation Temp Range | -5 ?C to +50 ?C |
| Storage Temp Range | -30 ?C to +70 ?C |
Product Material
| UL Rating/Flame Test | Non-UL Rated |
|---|
Standards
| REACH | Compliant |
|---|---|
| ISO/IEC Compliance | IEC 60794 |
| UV/ Sunlight Protection | yes |
History
| Update and Revision | Revision Number: 0.84 Revision Date: 07-19-2021 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| GOCN824.002100 | Black | Reel | 2,100 m | 8719605077387 |
| GOCN824.004100 | Black | Reel | 4,100 m | 8719605077394 |
