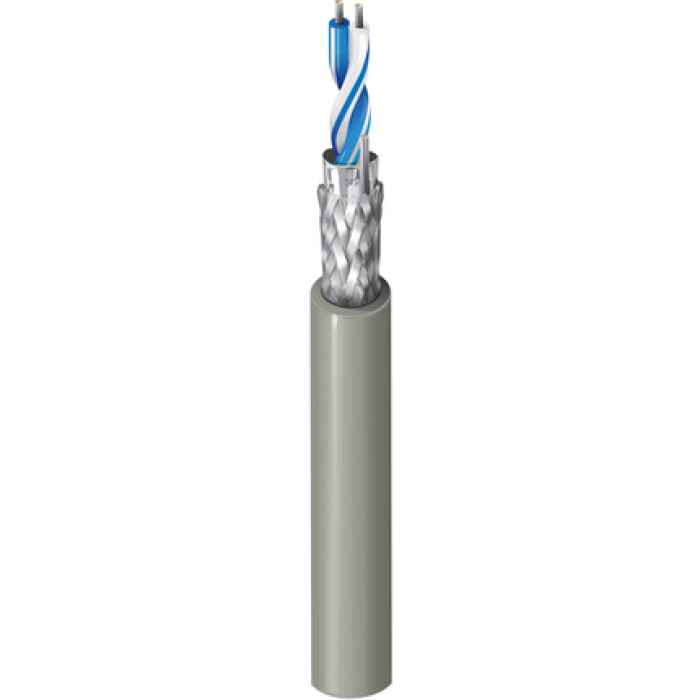

Belden 9841NH RS485, 1 Pr #24 Str TC, PO Ins, OS+TC Brd, LSZH Jkt, Dca
Belden 9841NH RS485, 1 Pr #24 Str TC, PO Ins, OS+TC Brd, LSZH Jkt, Dca
Back to products
Belden 4506FE Security & Sound, 8 Conductor 22 AWG BC, LSZH, Shielded, Eca
Belden 4506FE Security & Sound, 8 Conductor 22 AWG BC, LSZH, Shielded, Eca

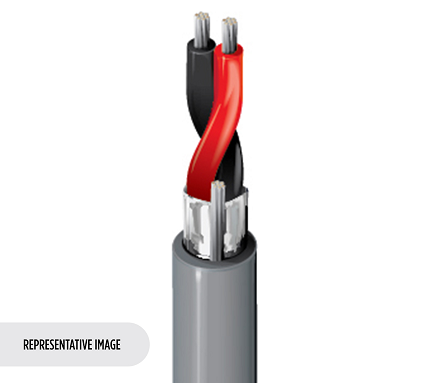

Belden 9451 Audio Cable, 1 Pair 22 AWG TC, Shielded, Riser

Audio Cable, 1 Pair 22 AWG stranded (7×30) tinned copper pair, polypropylene insulation, Beldfoil? shield, drain, Riser, PVC jacket.

SKU: Belden 9451 Categories: , , Tag:
Description
Product Overview
Suitable Applications Automatic Stripping Equipment; Low Voltage analog Signals (4-20mA, 0-10V, …); Low Voltage Digital Control (24V, ?); Line Level audio; Computer Communication; Panel Wiring
Construction Details
CONDUCTOR
Element Number of Element AWG Stranding Material
Pair(s) 1 22 7×30 TC – Tinned Copper
INSULATION
Element Material Thickness Nom. Insulation Diameter Color Code
Pair(s) PP – Polypropylene 0.009 in (0.23 mm) 0.046 in (1.2 mm) Black & Red
OUTER SHIELD MATERIAL
Shield Type Material Coverage Drainwire Type Notes
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC Jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield.
OUTER JACKET MATERIAL
Material Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.020 in (0.51 mm) 0.135 in
Cable Diameter (Nominal) 0.135 in (3.43 mm)
Electrical Characteristics
ELECTRICALS
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 14.1 Ohm/1000ft (46.3 Ohm/km) 35 pF/ft (110 pF/m) 67 pF/ft (220 pF/m) 45 Ohm 66% 2.9 Amps per Conductor at 25?C
Nom. Outer Shield DCR 14.3 Ohm/1000ft
VOLTAGE
UL Voltage Rating
300 V (CMR)
Mechanical Characteristics
TEMPERATURE
UL Rating Operating
60?C -20?C to +75?C
BEND RADIUS
Stationary Min. Installation Min.
1.4 in (36 mm) 1.4 in (36 mm)
Max. Pull Tension 27 lbs (12 kg)
Bulk Cable Weight 14 lbs/1000ft (21 kg/km)
Standards and Compliance
Environmental Suitability Indoor – Riser, Indoor
Sustainability CA Prop 65
Flammability / Fire Resistance UL1666 Vertical Shaft, FT4, IEC 60332-1-2
NEC / UL Compliance Article 800, CMR
CPR Euroclass Eca
European Directive Compliance EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance China RoHS II (GB/T 26572-2011)
Plenum Number 9451P
Product Notes
Notes For cross-connect, use with 1814R (et. al.) Snake Cables.
History
Update and Revision Revision Number: 0.380 Revision Date: 07-02-2021
