Belden-8777

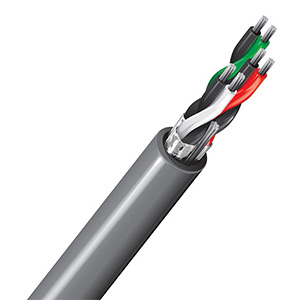

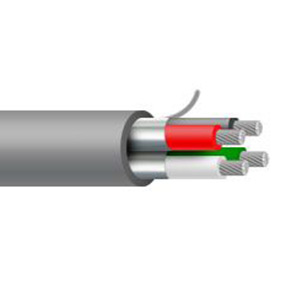

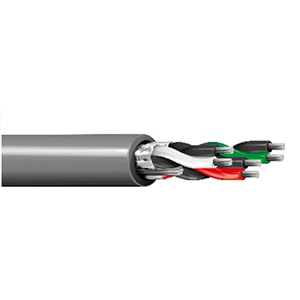

The 8777 060100 is a 100ft 3-pair 6-conductor shielded Twisted Pair Cable with 22AWG stranded (7 x 30) tinned copper conductors, polypropylene insulation, Beldfoil? aluminum-polyester shield (100% coverage) and chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O’s to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- 50? Impedance
- 30pF/ft Conductor to conductor nominal capacitance
- 55pF/ft Conductor to other conductor and shield nominal capacitance
- 15?/1000ft at 20?C Nominal conductor DC resistance
- UL1685 Flame tested
Applications
Industrial
