Belden-8719

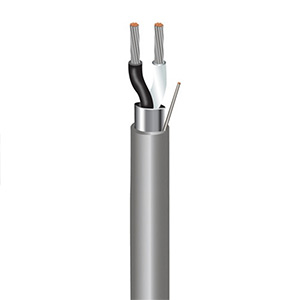

The 8719 060U500 is a 1-pair Shielded Cable with 16AWG stranded tinned copper conductors and polyethylene insulation. This twist pair multi-conductor cable comes with a Beldfoil? aluminum foil-polyester tape shield (100% coverage), 18AWG stranded tinned copper drain wire and chrome PVC jacket. Belden paired cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O’s to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms
- 453.716N Maximum recommended pulling tension
- 0.6562?H/m Nominal inductance
- 75.463pF/m Nominal capacitance conductor to conductor
- 14.7645?/km at 20?C Nominal conductor DC resistance (DCR)
- -20 to 80?C Operating temperature range
Applications
Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
