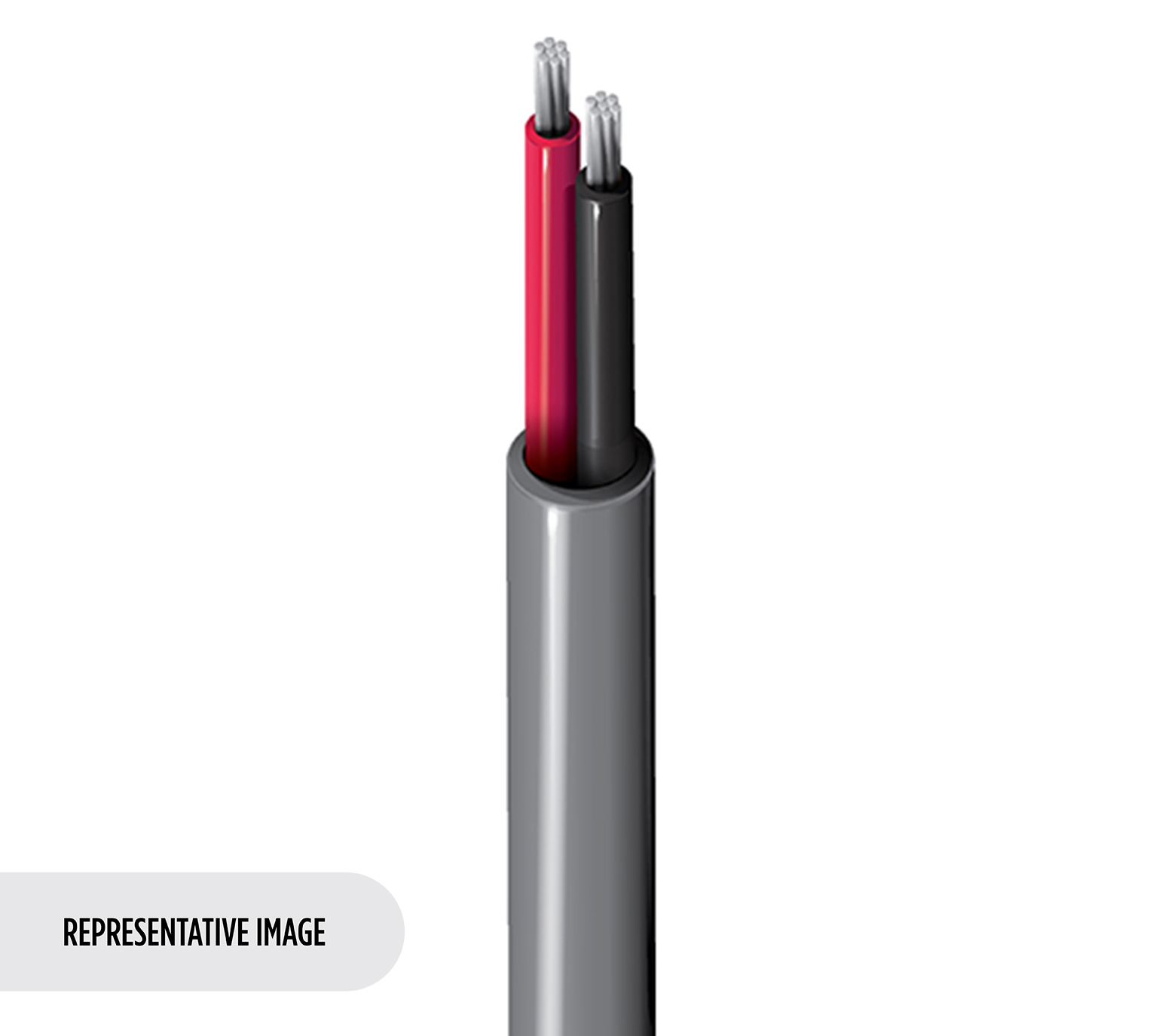

Product Overview
| Suitable Applications | low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, ?); line level audio; computer communication; panel wiring |
|---|
Construction Details
CONDUCTOR
| Element | Number of Element | AWG | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 18 | 7×26 | TC – Tinned Copper |
INSULATION
| Element | Material | Thickness | Color Code |
|---|---|---|---|
| Pair(s) | PVC – Polyvinyl Chloride | 0.022 in (0.56 mm) | Black & White |
OUTER JACKET MATERIAL
| Material | Thickness | Nom. Diameter |
|---|---|---|
| PVC – Polyvinyl Chloride | 0.027 in (0.69 mm) | 0.234 in |
| Cable Diameter (Nominal) | 0.234 in (5.94 mm) |
|---|
Electrical Characteristics
ELECTRICALS
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Max. Current |
|---|---|---|---|
| Pair(s) | 5.86 Ohm/1000ft (19.2 Ohm/km) | 22 pF/ft (72 pF/m) | 4.8 Amps per Conductor at 20?C |
VOLTAGE
| UL Voltage Rating |
|---|
| 300 V (CMG), 300 V (CL3) |
Mechanical Characteristics
TEMPERATURE
| UL Rating | Operating |
|---|---|
| -20?C to +80?C | -20?C to +80?C |
BEND RADIUS
| Stationary Min. | Installation Min. |
|---|---|
| 2.3 in (58 mm) | 2.3 in (58 mm) |
| Max. Pull Tension | 45 lbs (20 kg) |
|---|---|
| Bulk Cable Weight | 26 lbs/1000ft (39 kg/km) |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Fire Resistance | UL1685 FT4 Loading, FT4, IEC 60332-1-2 |
| NEC / UL Compliance | Article 725, Article 800, CMG, CL3 |
| CEC / C(UL) Compliance | CMG |
| CPR Euroclass | Eca |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.346 Revision Date: 07-02-2021 |
|---|
