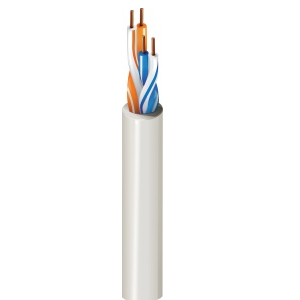

Belden 7703NH LonWorks, 1PR #22 Sol BC, PO ins, OS, LSNH Jkt, 300V, Dca

LonWorks, 1 Pair AWG 22 Bare Copper – Solid, Polyolefin (PO, PE, PP) insulation, Overall Beldfoil? shielding, LSZH / FRNC jacket , 300V, CPR Dca

(د.إ) - AED
($) - USD

SKU: Belden 7703NH Categories: Audio cables, Belden, Belden Audio cables Tag: Belden

Description
Shipping & Delivery

Description

Suitable Applications	LonWorks, instrumentation, Low capacitance

AWG	Stranding	Material	Nominal Diameter	No. of Pairs
22	Solid	BC – Bare Copper	0.64 mm	1

Conductor Count	2
Total Number of Pairs	1

Material	Nominal Diameter	Diameter +/- Tolerance	Min. Wall Thickness
PE – Polyethylene (Foam)	1.55 mm	0.05 mm	0.4 mm

Number	Color
Pair 1	White/Blue & Blue/White

Table Notes	Ring marking applied

Type	Material	Coverage [%]	Drainwire Material	Drainwire Diameter	Drainwire AWG
Tape	Bi-Laminate (Alum+Poly)	100%	TC – Tinned Copper	0.51 mm	24

Table Notes	Aluminum inside

Material	Nominal Diameter	Diameter +/- Tolerance	Min. Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant)	5.2 mm	0.4 mm	0.5 mm

Nominal Conductor DCR	Nominal Outer Shield DCR
55 Ohm/km	34 Ohm/km

Nom. Capacitance Conductor to Conductor	Nom. Capacitance Conductor to Shield
40 pF/m	80 pF/m

Frequency [MHz]	Nominal Characteristic Impedance
1 – 20	100 Ohm

Frequency [MHz]	Nom. Insertion Loss
0.772 MHz	1.8 dB/100m
1 MHz	2 dB/100m
4 MHz	3.6 dB/100m
10 MHz	5.5 dB/100m
16 MHz	7 dB/100m
20 MHz	7.8 dB/100m

Element	Max. Recommended Current [A]
Conductor	2.5 Amps per Conductor

Voltage Rating [V]
300 V

Operating Temp Range	-15?C To +80?C

Bulk Cable Weight	26.6 kg/km
Max. Pull Tension	50 N
Min. Bend Radius During Installation	80 mm

CPR Euroclass	Dca-s1,d1,a1
Other Specification	BS 7655 section 6.1 table 1, LTS 3

Environmental Space	Indoor – Euroclass Dca
EU RoHS Compliance Date (yyyy-mm-dd)	1998-01-01

IEC Flammability	IEC 60332-1-2 and IEC 60332-3-24
IEC 60754-1 – Halogen Amount	Zero

Update and Revision	Revision Number: 0.269 Revision Date: 08-27-2021

Part Numbers

Item #	Color	Put-Up Type	Length	EAN
7703NH.00C100	White	Coil	100 m	8719605013477
7703NH.00305	White	Reel	305 m	8719605013453
7703NH.00500	White	Reel	500 m	8719605013460
