Product Overview
| Suitable Applications | Intercom/PA Systems, Sound/Audio Systems |
|---|

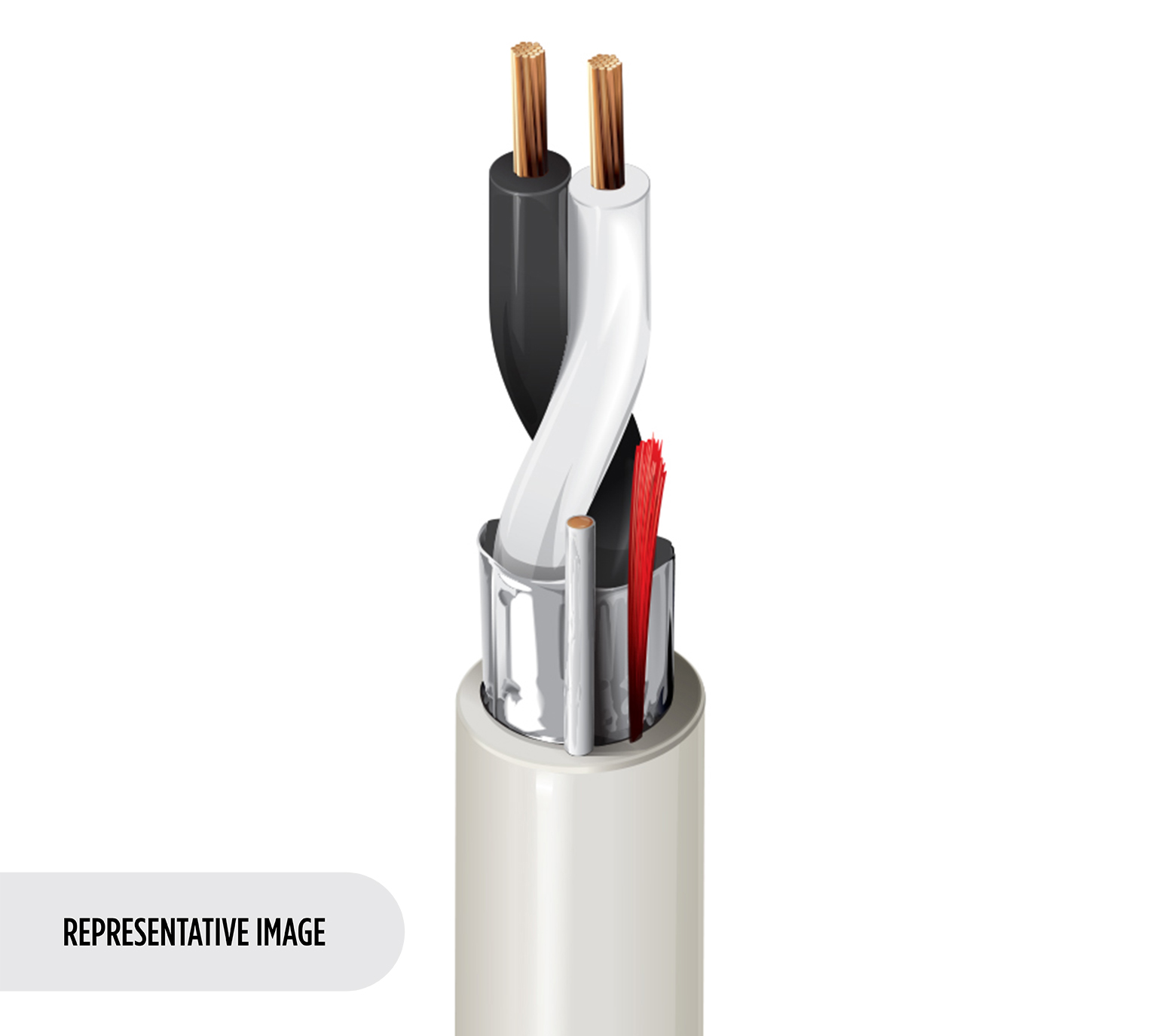

Construction Details
CONDUCTOR
| Element | Number of Element | AWG | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 20 | 7×28 | BC – Bare Copper |
INSULATION
| Element | Material | Thickness | Color Code |
|---|---|---|---|
| Conductor(s) | PP – Polypropylene | 0.008 in (0.20 mm) | Black, Red |
OUTER SHIELD MATERIAL
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC |
OUTER JACKET MATERIAL
| Material | Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC – Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.142 in | Yes |
| Cable Diameter (Nominal) | 0.142 in (3.61 mm) |
|---|
Electrical Characteristics
ELECTRICALS
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|---|
| Conductor(s) | 10.3 Ohm/1000ft (33.8 Ohm/km) | 40 pF/ft (130 pF/m) | 72 pF/ft (240 pF/m) | 3.75 Amps per conductor @ 25?C |
| Nom. Outer Shield DCR | 16.7 Ohm/1000ft |
|---|
VOLTAGE
| UL Voltage Rating |
|---|
| 300 V (CMR) |
Mechanical Characteristics
TEMPERATURE
| UL Rating | Operating |
|---|---|
| 75?C | -20?C to +75?C |
BEND RADIUS
| Stationary Min. | Installation Min. |
|---|---|
| 1.4 in (36 mm) | 1.4 in (36 mm) |
| Max. Pull Tension | 37 lbs (17 kg) |
|---|---|
| Bulk Cable Weight | 13 lbs/1000ft (19 kg/km) |
Standards and Compliance
| Environmental Suitability | Indoor – Riser, Indoor |
|---|---|
| Flammability / Fire Resistance | UL1666 Riser, FT4, IEC 60332-1-2 |
| NEC / UL Compliance | Article 800, CMR |
| CEC / C(UL) Compliance | CMG |
| CPR Euroclass | Eca |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6400FE |
History
| Update and Revision | Revision Number: 0.346 Revision Date: 07-02-2021 |
|---|
