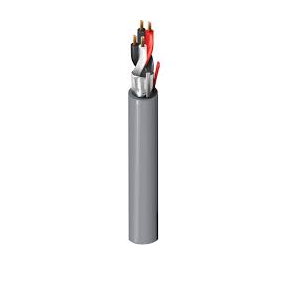

Belden 5341FE Security & Sound, #18-2pr, BC, Shielded, CMR

Security & Sound Cable, Riser-CMR, 2-18 AWG stranded bare copper pairs with polypropylene insulation, Beldfoil? shield and PVC jacket with ripcord

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Element	Number of Element	AWG	Stranding	Material
Pair(s)	2	18	7×26	BC – Bare Copper

Element	Material	Thickness	Color Code
Pair(s)	PP – Polypropylene	0.007 in (0.18 mm)	Black & Red, Black & White

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (7×32) TC

Material	Thickness	Nom. Diameter	Ripcord
PVC – Polyvinyl Chloride	0.017 in (0.43 mm)	0.250 in	Yes

Cable Diameter (Nominal)	0.250 in (6.35 mm)

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Max. Current
Pair(s)	6.55 Ohm/1000ft (21.5 Ohm/km)	29 pF/ft (95 pF/m)	52.25 pF/ft (171.4 pF/m)	7.2 Amps per conductor @ 25?C

Nom. Outer Shield DCR	13.1 Ohm/1000ft

UL Voltage Rating
300 V (CMR)

UL Rating	Operating
75?C	-20?C to +75?C

Stationary Min.	Installation Min.
2.5 in (64 mm)	2.5 in (64 mm)

Max. Pull Tension	104 lbs (47.2 kg)
Bulk Cable Weight	34 lbs/1000ft (51 kg/km)

Environmental Suitability	Indoor – Riser, Indoor
Flammability / Fire Resistance	UL1666 Riser, IEC 60332-1-2
NEC / UL Compliance	Article 800, CMR
CEC / C(UL) Compliance	CMG
CPR Euroclass	Eca
European Directive Compliance	EU CE Mark

Update and Revision	Revision Number: 0.289 Revision Date: 07-02-2021
