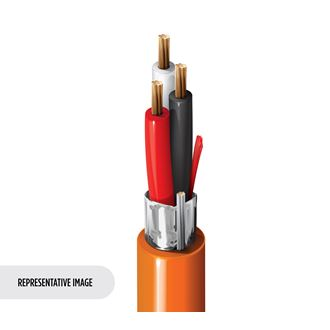

Belden 4501FE Security & Sound, 3 Conductor 22 AWG BC, LSZH, Shielded, Eca

Security & Commercial Audio Cable, 3-22 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil? shield, LSZH jacket with ripcord, CPR Eca

(د.إ) - AED
($) - USD

SKU: Belden 4501FE Categories: Audio cables, Belden, Belden Audio cables Tag: Belden

Description
Shipping & Delivery

Description

Suitable Applications	Intercom/PA Systems, Sound/Audio Systems

AWG	Stranding	Material	Nominal Diameter	No. of Conductors
22	7×30	BC – Bare Copper	0.75 mm	3

Conductor Count	3

Type	Material	Nominal Diameter	Diameter +/- Tolerance	Nominal Wall Thickness
Insulation	PP – Polypropylene	1.07 mm	0.05 mm	0.2 mm

Number	Color
Wire 1	Black
Wire 2	Red
Wire 3	White

Type	Material	Material Trade Name	Coverage [%]	Thickness of Foil	Drainwire Material	Drainwire AWG
Tape	Bi-Laminate (Alum+Poly)	Beldfoil?	100%	9 ?m	TC – Tinned Copper	AWG24/7

Material	Nominal Diameter	Nominal Wall Thickness	Ripcord
LSZH – Low Smoke Zero Halogen (Flame Retardant)	3.4 mm	0.4 mm	Provided under the sheath

Description
3 wires twisted

Nominal Conductor DCR	Nominal Outer Shield DCR
54 Ohm/km	54 Ohm/km

Nom. Capacitance Conductor to Conductor	Nom. Capacitance Conductor to Other Conductor to Shield
100 pF/m	180 pF/m

Max. Recommended Current [A]
2.8 Amps per Conductor

Voltage Rating [V]
300 V

Installation Temp Range	-20?C To +70?C
Storage Temp Range	-30?C To +70?C
Operating Temp Range	-20?C To +70?C

Max. Pull Tension	50 N
Min. Bend Radius During Installation	34 mm
Min Setting Radius	17 mm

CPR Euroclass	Eca

Environmental Space	Indoor – Euroclass Eca
EU RoHS Compliance Date (yyyy-mm-dd)	2005-01-01

IEC Flammability	IEC 60332-1-2
IEC 60754-1 – Halogen Amount	Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity	2.5 ?S/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH	4.3
IEC 61034-2 – Smoke Density Min. Transmittance	60%

Update and Revision	Revision Number: 0.205 Revision Date: 08-27-2021

Part Numbers

Item #	Color	Put-Up Type	Length	EAN
4501FE.00500	Gray, RAL 7032	Reel	500 m	8719605007094
