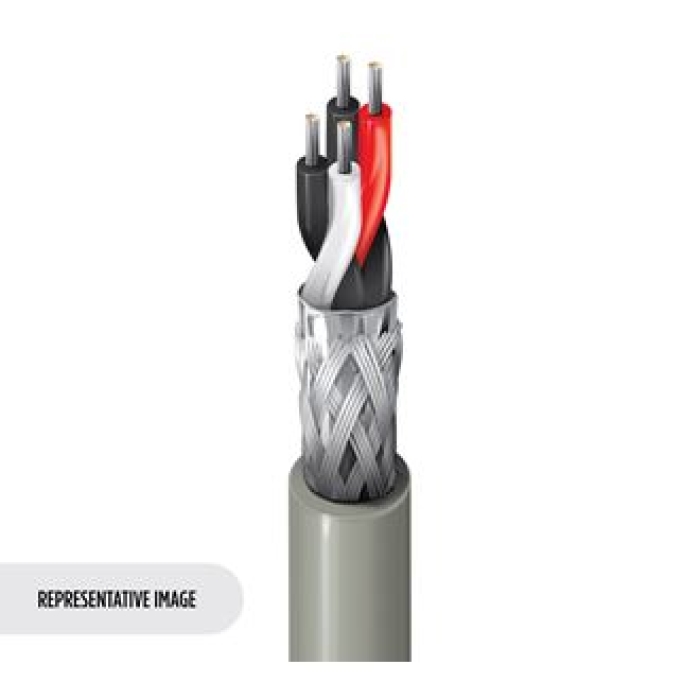

Belden 9842NH RS485, 2 Pr #24 Str TC, PO Ins, OS+TC Brd, LSZH Jkt, Dca
Belden 9842NH RS485, 2 Pr #24 Str TC, PO Ins, OS+TC Brd, LSZH Jkt, Dca
Back to products
Belden 1032A Inst, 1 Pr #18 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC-ER ITC-ER CMG
Belden 1032A Inst, 1 Pr #18 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC-ER ITC-ER CMG

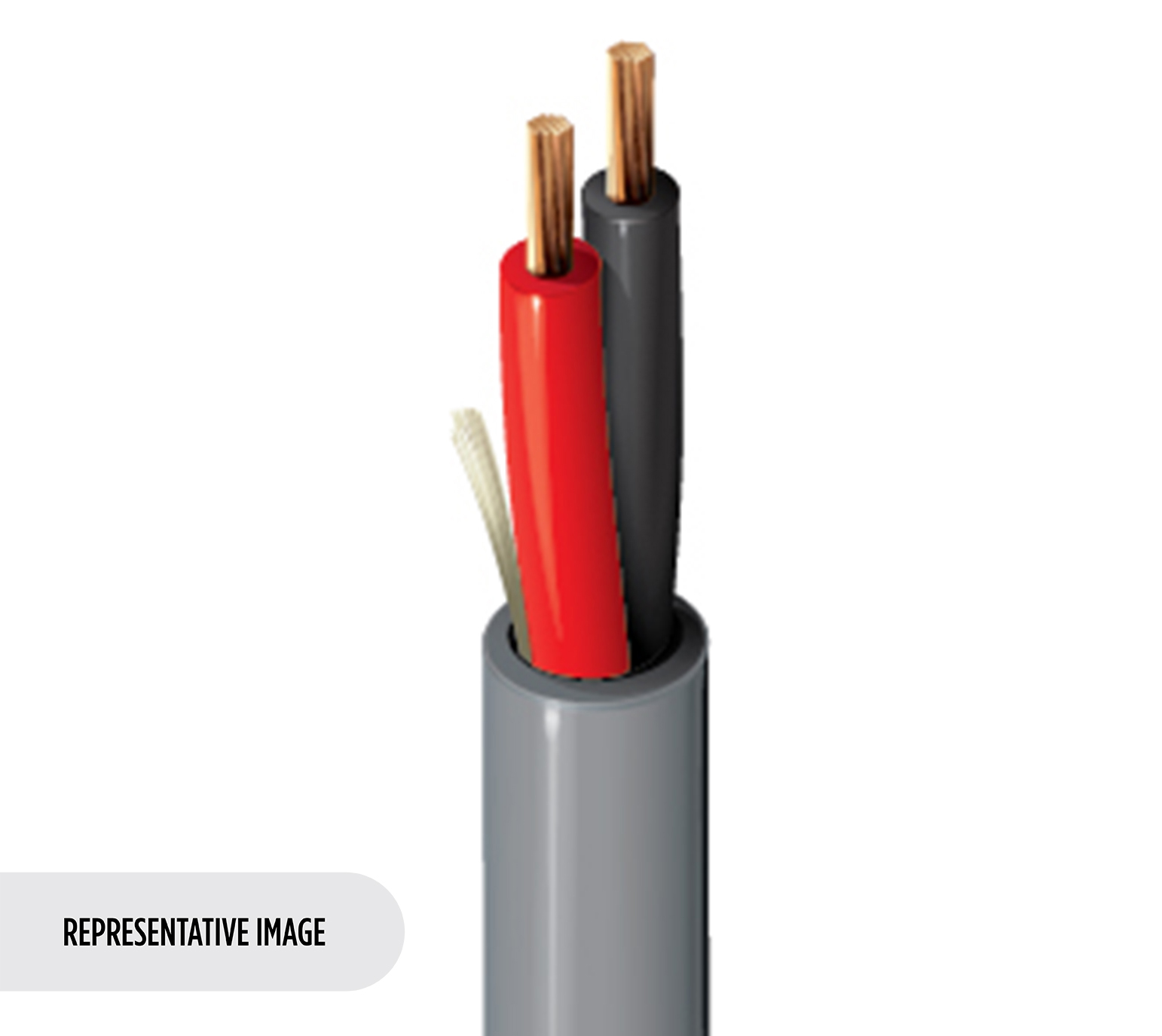

Belden 4100UE Security & Sound, 2 Conductor 14 AWG BC, LSZH, Eca

Security & Commercial Audio Cable, 2-14 AWG stranded bare copper conductors with polypropylene insulation, LSZH jacket with ripcord, CPR Eca

SKU: Belden 4100UE Categories: , , Tag:
Description
Product Overview
Suitable Applications Intercom/PA Systems, Sound/Audio Systems, Control Systems
Physical Characteristics (Overall)
CONDUCTOR
AWG Stranding Material Nominal Diameter No. of Conductors
14 19×27 BC – Bare Copper 1.8 mm 2
Conductor Count 2
INSULATION
Type Material Nominal Diameter Diameter +/- Tolerance Nominal Wall Thickness
Insulation PP – Polypropylene 2.34 mm 0.05 mm 0.28 mm
COLOR CHART
Number Color
Wire 1 Black
Wire 2 White
OUTER JACKET MATERIAL
Material Nominal Diameter Nominal Wall Thickness Ripcord
LSZH – Low Smoke Zero Halogen (Flame Retardant) 5.55 mm 0.4 mm Provided under the sheath
Construction and Dimensions
CABLING
Description
2 wires twisted
Electrical Characteristics
CONDUCTOR DCR
Nominal Conductor DCR
8.3 Ohm/km
CAPACITANCE
Nom. Capacitance Conductor to Conductor
270 pF/m
CURRENT
Max. Recommended Current [A]
8 A
VOLTAGE
Voltage Rating [V]
300 V
Temperature Range
Installation Temp Range -20?C To +70?C
Storage Temp Range -30?C To +70?C
Operating Temp Range -20?C To +70?C
Mechanical Characteristics
Max. Pull Tension 60 N
Min. Bend Radius During Installation 55.5 mm
Min Setting Radius 27.75 mm
Standards
CPR Euroclass Eca
Applicable Environmental and Other Programs
Environmental Space Indoor – Euroclass Eca
EU RoHS Compliance Date (yyyy-mm-dd) 1998-01-01
Flammability, LS0H, Toxicity Testing
IEC Flammability IEC 60332-1-2
IEC 60754-1 – Halogen Amount Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity 2.5 ?S/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH 4.3
IEC 61034-2 – Smoke Density Min. Transmittance 60%
History
Update and Revision Revision Number: 0.209 Revision Date: 08-27-2021
Part Numbers
Item # Color Put-Up Type Length EAN
4100UE.00100 Gray Reel 100 m 8719605006219
4100UE.00500 Gray Reel 500 m 8719605006226
4100UE.02305 Orange Reel 305 m 8719605192462
4100UE.02500 Orange Reel 500 m 8719605192455
