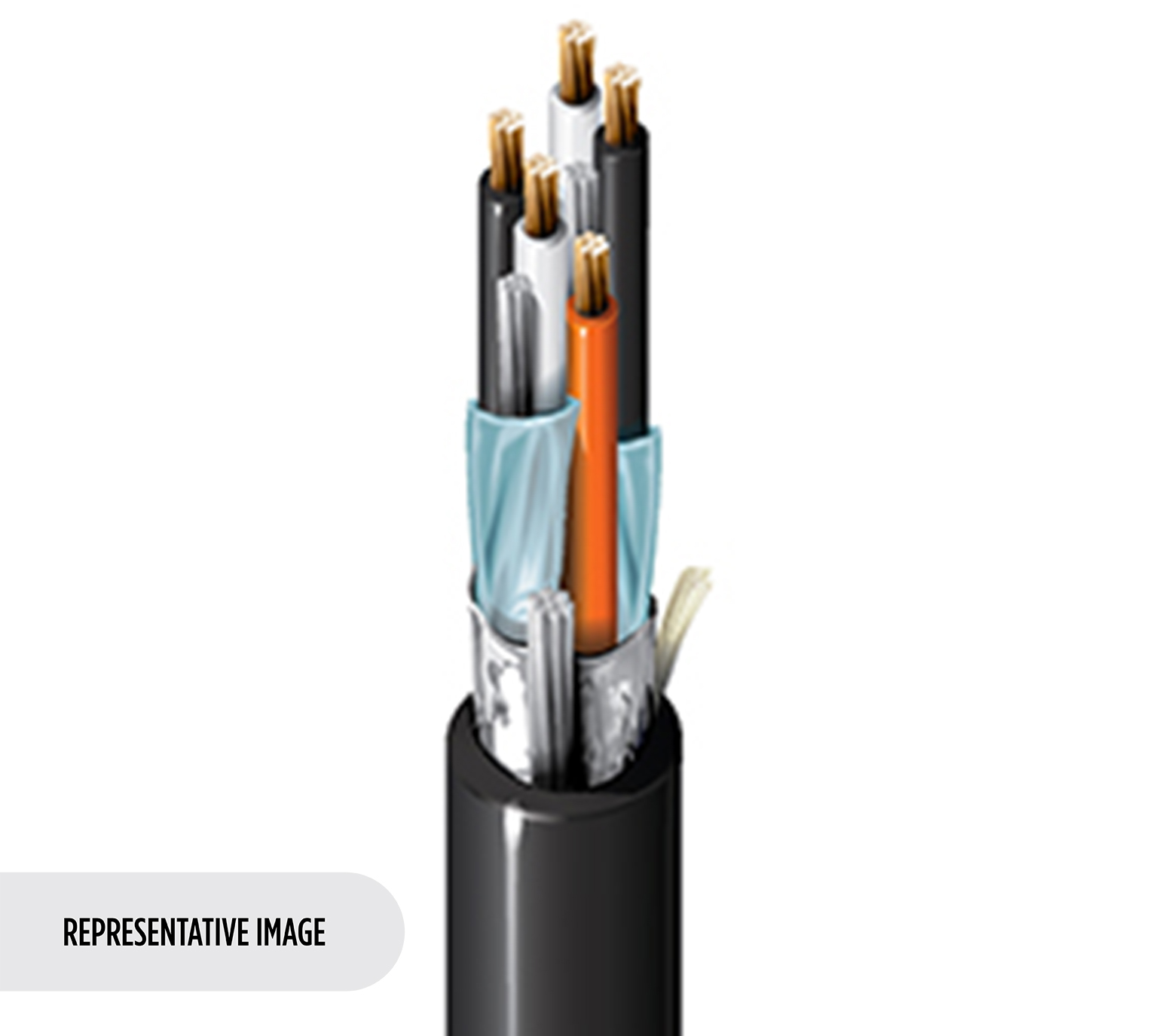

Belden 1032A Inst, 1 Pr #18 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC-ER ITC-ER CMG

UL Instrumentation, 1 Pair 18AWG (7×26) Bare Copper, PVC Insulation E1 Color Code, Overall Beldfoil? Shield, Black PVC Outer Jacket, PLTC-ER ITC-ER CMG AWM 2464 SUN RES

SKU: Belden 1032A Categories: , , Tag:
Description
Product Overview
Suitable Applications Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, …),low voltage digital control (24v, ?), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners
Construction Details
CONDUCTOR
Element Number of Element AWG Stranding Material
Pair(s) 1 18 7×26 BC – Bare Copper
INSULATION
Element Material Thickness Color Code
Pair(s) PVC – Polyvinyl Chloride 0.017 in (0.43 mm) Black, White
OUTER SHIELD MATERIAL
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (7×28) TC
OUTER JACKET MATERIAL
Material Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.037 in (0.94 mm) 0.237 in Yes
Cable Diameter (Nominal) 0.237 in (6.02 mm)
Electrical Characteristics
ELECTRICALS
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Pair(s) 5.86 Ohm/1000ft (19.2 Ohm/km) 51 pF/ft (170 pF/m) 95 pF/ft (310 pF/m) 8 Amps per conductor @ 25?C
Comm Wire 14.7 Ohm/1000ft (48.2 Ohm/km)
Nom. Outer Shield DCR 5.07 Ohm/1000ft
VOLTAGE
UL Voltage Rating
300 V (CMG, PLTC-ER, UL AWM 2464), 150 V (ITC-ER)
Mechanical Characteristics
TEMPERATURE
UL Rating Operating
105?C -30?C to +105?C
BEND RADIUS
Stationary Min. Installation Min.
2.4 in (61 mm) 2.4 in (61 mm)
Max. Pull Tension 26 lbs (12 kg)
Bulk Cable Weight 30 lbs/1000ft
Standards and Compliance
Environmental Suitability Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
Flammability / Fire Resistance UL1685 (FT4 Loading), FT4, 1202
NEC / UL Compliance Article 725, Article 727, Article 800, CMG, PLTC-ER, ITC-ER
AWM Compliance 2464
CEC / C(UL) Compliance CMG
European Directive Compliance EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
