Name: Belden 1030A Inst, 1 Pr #16 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC-ER, ITC-ER, CMG
SKU: Belden 1030A
Availability: InStock

Belden 1030A Inst, 1 Pr #16 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC-ER, ITC-ER, CMG

د.إ 0.00

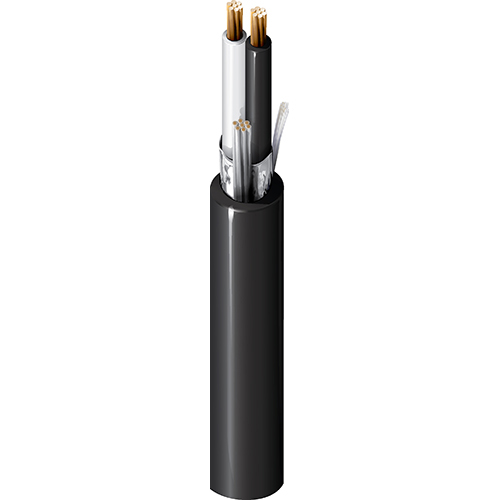

UL Instrumentation, 1 Pair 16AWG (7×24) Bare Copper, PVC Insulation E1 Color Code, Overall Beldfoil? Shield, Black PVC Outer Jacket, PLTC-ER ITC-ER CMG SUN RES

Suitable Applications	Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, …),low voltage digital control (24v, ?), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Element	Number of Element	AWG	Stranding	Material
Pair(s)	1	16	7×24	BC – Bare Copper

Element	Material	Thickness	Nom. Insulation Diameter	Color Code
Pair(s)	PVC – Polyvinyl Chloride	0.017 in (0.43 mm)	0.091 in (2.3 mm)	Black & White

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	18 AWG (7×26) TC

Material	Thickness	Nom. Diameter	Ripcord
PVC – Polyvinyl Chloride	0.037 in (0.94 mm)	0.259 in	Yes

Cable Diameter (Nominal)	0.259 in (6.58 mm)

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Max. Current
Pair(s)	4.2 Ohm/1000ft (14 Ohm/km)	61 pF/ft (200 pF/m)	114 pF/ft (374 pF/m)	11 Amps per Conductor @ 25?C

Nom. Outer Shield DCR	5.1 Ohm/1000ft

UL Voltage Rating
300 V (PLTC-ER, CMG, UL AWM 2464), 150 V (ITC-ER)

UL Rating	Operating
105?C	-30?C to +105?C

Stationary Min.	Installation Min.
2.6 in (66 mm)	2.6 in (66 mm)

Max. Pull Tension	40 lbs (18 kg)
Bulk Cable Weight	40 lbs/1000ft

Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
Flammability / Fire Resistance	UL1685 (FT4 Loading), FT4, 1202
NEC / UL Compliance	Article 725, Article 727, Article 800, CMG, PLTC-ER, ITC-ER
AWM Compliance	2464
CEC / C(UL) Compliance	CMG
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Update and Revision	Revision Number: 0.394 Revision Date: 06-08-2021
